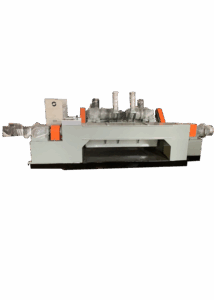

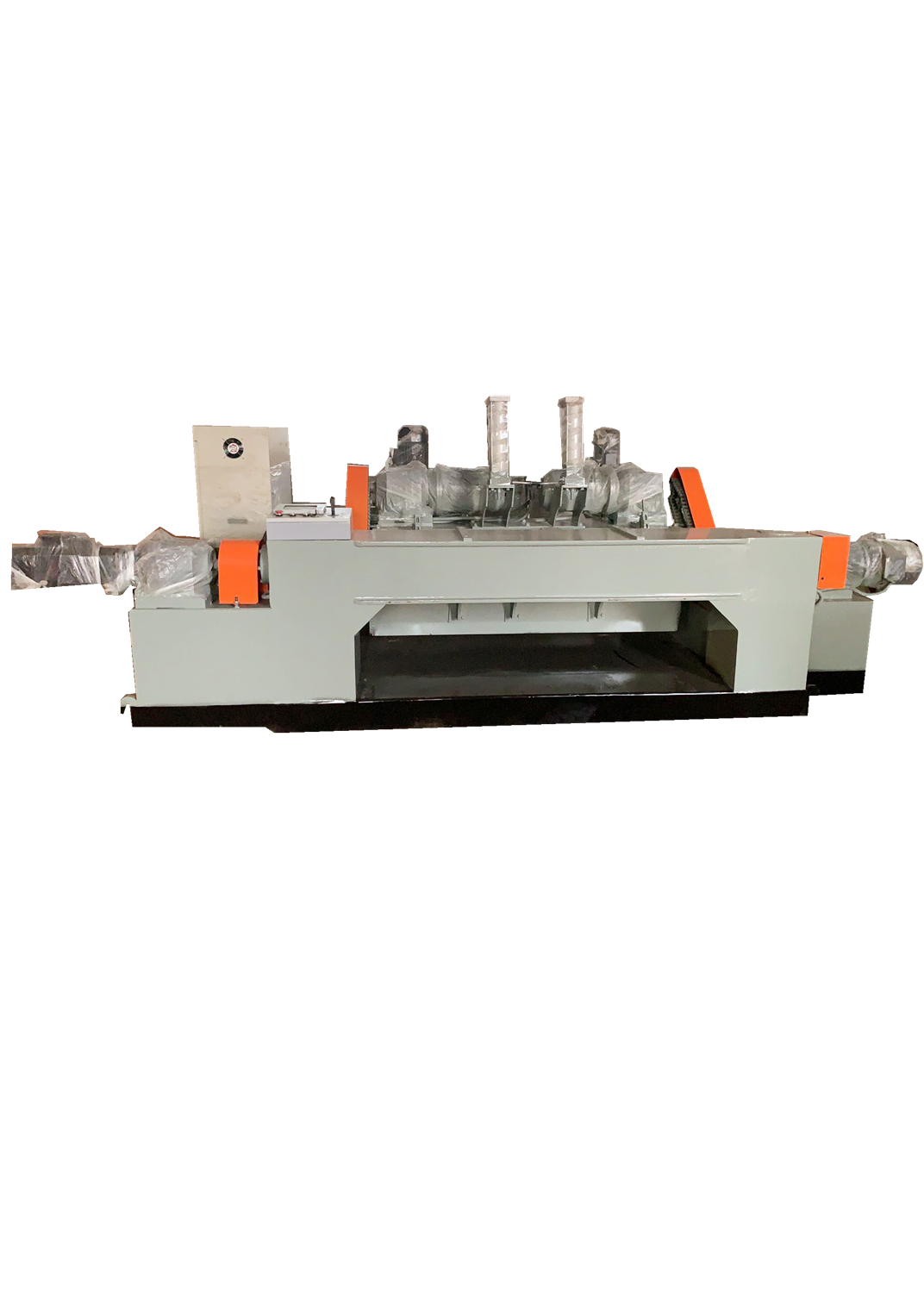

1500 Log Peeling Machine with Full Servo Motors

  Main Specifications:

• Double-Roller System

  • Roller Diameter: 156 mm (Cross Arrangement)

  • Gearbox: K87 Hard-tooth Surface Reducer

  • Motor: 11 KW Servo Motor × 2

• Single-Roller System

  • Roller Diameter: 125 mm

  • Gearbox: K87 Hard-tooth Surface Reducer

  • Motor: 11 KW Servo Motor × 2

• Feeding System

  • Gearbox: K87 Hard-tooth Surface Reducer

  • Motor: 15KW Servo Motor × 1

• Clipping Knife System (Rotary Chopper)

  • Gearbox: RV90 Reducer

  • Motor: 4 kW Servo Motor × 1

• Glue Roller System

  • Roller Diameter: 150 mm

  • Gearbox: RV90 Reducer

  • Motor: 4 KW Servo Motor × 1

• Guiding System

  • Oil-immersed slide bar + Ball screw (diameter: 116 mm) – 1 set each

• Knife Holders

  • Hydraulic Knife Clamping

  • Rotary Knife Size: 1500 × 180 × 16 mm

  • Vertical Knife Size: 889 / 965.2 / 1270 mm

• Core Support System:

  • Double Base Plate: 50#

  • Manual Veneer Receiving Rack: 5 m + 2 m

• Monitoring System: 1 Set (Camera & Display Screen)

Electrical Control Cabinet Configuration:

• 15 kW Servo for Feeding × 1

• 11 kW Servo for Double Roller × 2

• 11 kW Servo for Single Roller × 2

• 4 kW Servo for Glue Roller × 1

• 4 kW Servo for Clipping Knife × 1

• 3 kW Standard Motor for Hydraulic Knife Clamp × 1

• Electric Lubrication Pump × 1

• Pneumatic Striker System × 1

• Monitoring Screen × 1
