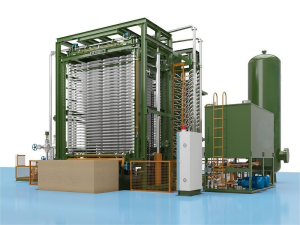

FULL AUTOMATIC 30 LAYERS PLYWOOD HOT PRESS MACHINE

FULL AUTOMATIC 30 LAYERS PLYWOOD HOT PRESS MACHINE

Plywood size(mm) 1220*2440mm

Max. opening space 70mm

Number of layers 30 layers

Working press(kg/cm2) 21kg/cm2

Closing speed(M/min) 15M/min

Overall size(mm) 3590mm(L)*1370mm(W)*6650mm(H)

Total weight 75T

Depth of foundation 4300mm

Technical Parameters

Hot press platen size: 2700(L)*1370(W)*42mm(H)

Feeding mode: double input and double output

Main oil cylinder of press:Φ3202250mm4PCS(Main)

Working stroke(mm):2100mm

Hydraulic station size:Φ1440mm*6620mm(9CBM)

Total weight of hydraulic station: 5800KGS

Low pressure pump motor: 22KW*2PCS

High pressure pump motor: 5.6KW*1PC

Elevator motor: 2.2KW*1PC

Total power: 51.8KW

Technical Feature Comparison: Full-Automatic vs. Semi-Automatic Plywood Hot Press

Feature	Full-Automatic Hot Press	Semi-Automatic Hot Press
Heating System(steam or thermal oil heating)	✔	✔
Hydraulic Pressure Control	Multi-stage programmable pressure profile: pre-press → pressure stage 1 → pressure stage 2 → hold pressure → decompression phase 1 → decompression phase 2	Basic 1–2 stage pressure control: pre-press and main pressing
Temperature Control Accuracy	Plate temperature within ±2°C	Plate temperature within ±5°C
Thickness Control	✔ automatic thickness measurement and compensation system	❌
Process Timing Control	Independent timing control for each pressing stage with precision up to 0.1 seconds	Overall pressing time control with typical accuracy ±1–2 seconds
Pressure Synchronization	Multi-cylinder synchronized hydraulic system with real-time pressure balancing; pressure deviation ≤ ±0.05–0.1 MPa	Shared hydraulic circuit with passive balancing relying on mechanical structure
Material Handling Automation	✔ fully automated board loading and unloading system	❌
Safety Features	✔ light curtain and safety interlocks minimizing operator risk	Manual operation requiring human intervention; higher risk of injury
Data Acquisition & Integration	✔ real-time recording of pressure, temperature, and process parameters; supports MES integration	❌

Why Choose Our Full-Automatic Plywood Hot Press?

Save a Lot of LaborOne person can run several full-automatic hot presses, but semi-automatic machines need at least two people each. Over two shifts, one full-automatic machine saves two workers’ wages. If you have more machines, the labor savings add up fast—two full-automatic machines can replace seven workers, while two semi-automatic ones still need eight people. So, full automation saves more money when production grows.
More Even ThicknessFull-automatic machines have sensors that check the thickness and adjust the pressure automatically. This keeps the plywood thickness steady and reduces waste.
Better Flatness and QualityMultiple hydraulic cylinders work together to apply even pressure everywhere. Plus, precise temperature and pressure control help the glue set evenly. This means plywood comes out flatter, stronger, and with fewer defects.
Safer to UseThe machine is fully enclosed and has safety sensors, so workers are protected from hot parts and moving equipment. This greatly lowers the chance of accidents.
Real-Time Data RecordingThe machine records pressure and temperature data while working. This info helps adjust the process based on raw materials and keeps the product quality consistent.If you want to know more details, please feel free to send us a message.
