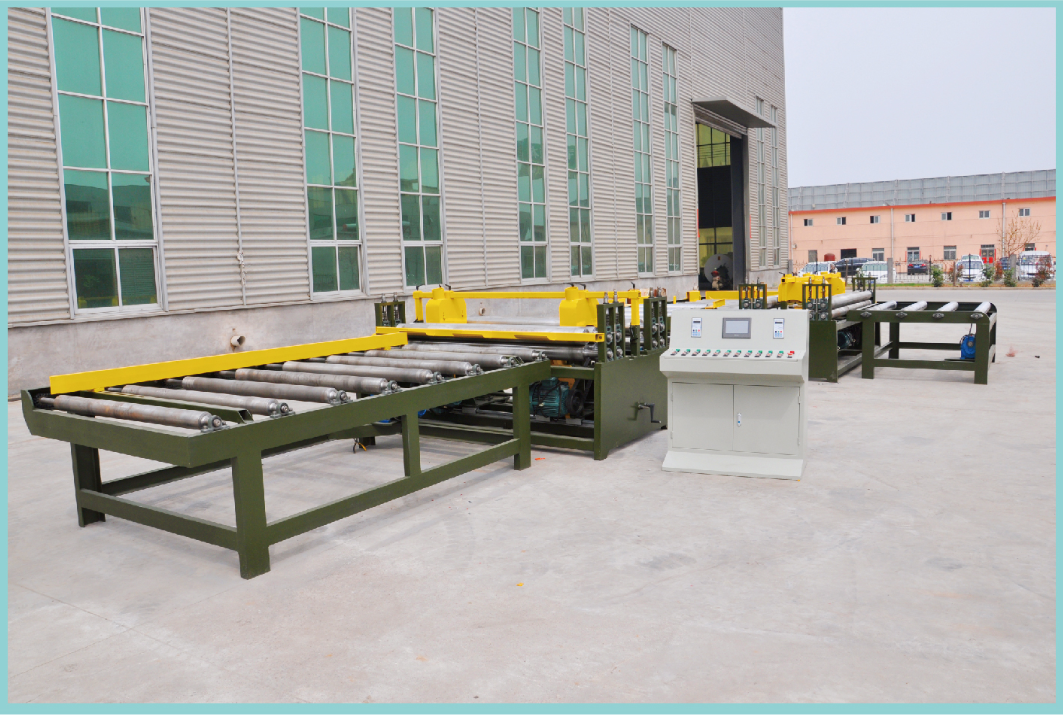

Full Automatic Plywood DD Saw

The fully automatic roller edge cutting machine uses suction cups to load plywood panels and rollers to move them forward. This makes it easy to feed wood panels automatically and continuously. After cutting, the panels are sent to a lifting table, where they are stacked automatically, which helps save labors and greatly improve efficiency.

Technical Parameters

• Saw Head: Cast housing processed by horizontal machining center

• Bearings: Japan-imported NSK

• Lift Platform Motor: 1 × 3KW

• Pneumatic Components: Aikesi brand

• PLC System: Siemens

• Reducer: Cycloidal-pin gear reducer

• Electrical Components: Chint & Schneider

• Electrical Cabinet: Dust-free powder-coated cabinet

• First Saw Guide Rail: 30mm hexagonal guide rail

• Second Saw Guide Rail: φ30 cylindrical guide rail

• Panel Discharge System: Fence-style automatic stacking system

• Panel Feeding Method: Suction cup feeding

• Main Motors: Siemens Beide

• Total Power: 37.68KW

   What’s the Advantages of Full Automatic Roller Type Plywood DD saw?

1. Faster and Continuous Panel Feeding
   This machine uses rollers to move plywood continuously, so there’s no need to stop and go like with traditional machines that use a moving cart. As a result, it works much faster, with cutting speeds up to 20–30 meters per minute.

2. Saves Labor
   With a suction cup for loading panels and automatic stacking after cutting, the whole process only needs one person to operate. It helps reduce labor and makes the job easier.

3. High Cutting Accuracy
   The rollers and guide rails are very precise, so the machine cuts straight and clean. The cutting error is controlled within ±1mm, which means very neat and professional results.

4. Smarter and Easier to Use
   The control system is more advanced and user-friendly. It allows you to set parameters easily, and it can detect problems automatically, making the machine smarter and more reliable.
