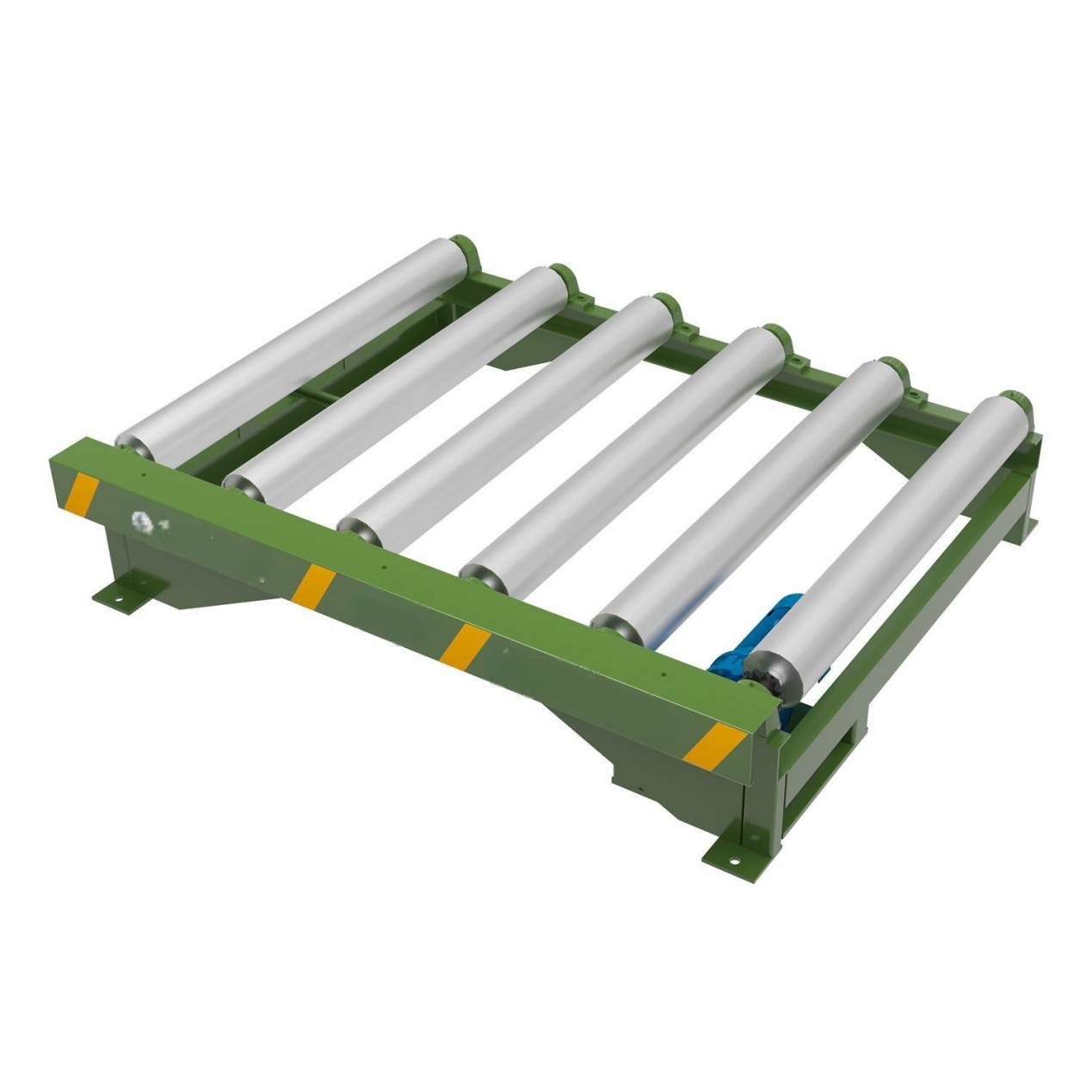

Ground Roller in the Automatic Plywood Production

• Load Capacity: 2000 kg

• Roller Conveyor Speed: 8.5 meters per minute

• Gear Reducer Type: BWD0-0.75 kW cycloidal gear reducer

• Overall Dimensions: Length 1500 mm × Width 1250 mm × Height 350 mm

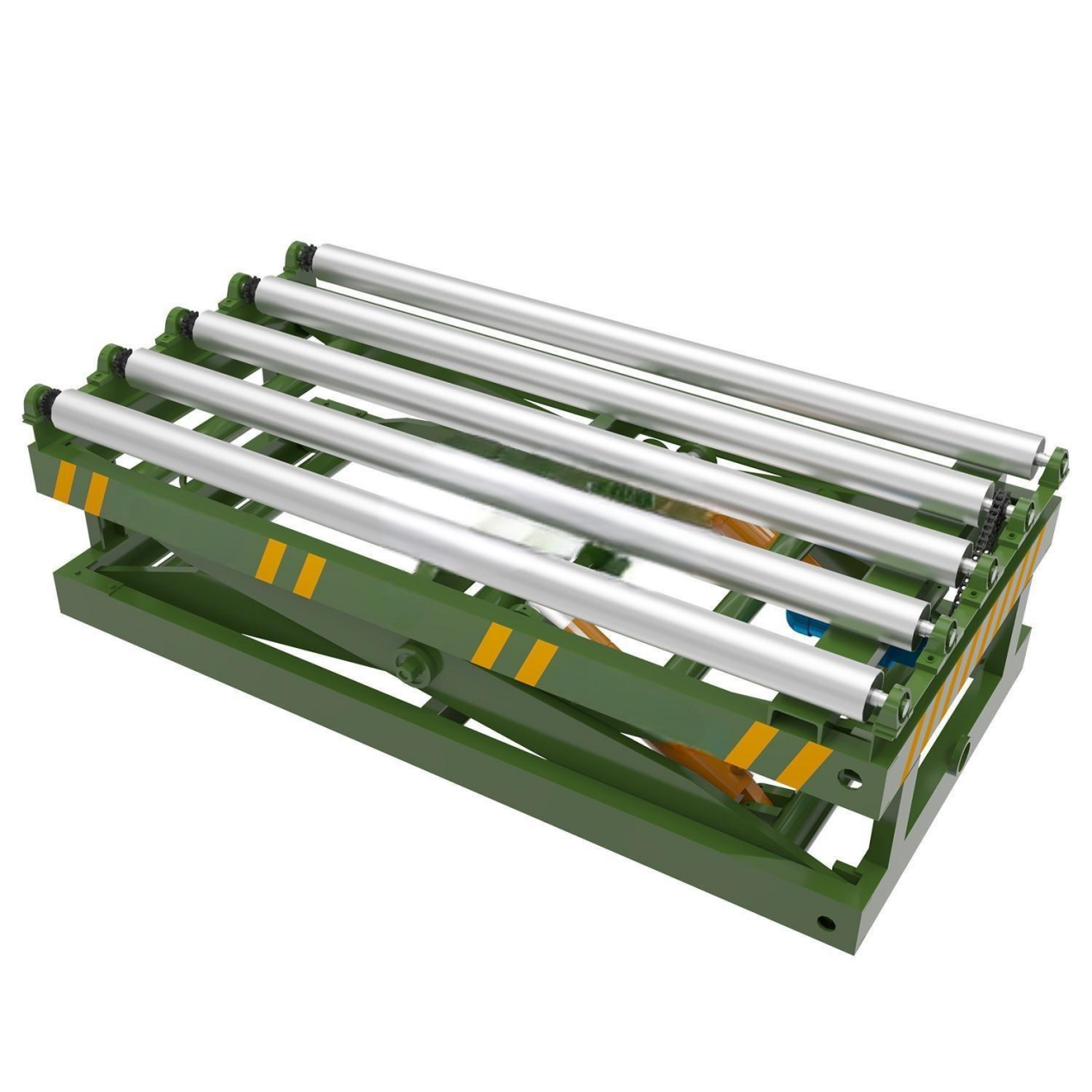

 4x8ft Powered Ground Roller (Long Rollers)

• Rated Load Capacity: 3000 kg

• Roller Conveyor Speed: 8.5 meters per minute

• Gear Reducer Type: BWD0-0.75 kW cycloidal gear reducer

• Roller Dimensions: Diameter 110 mm × Length 430 mm

• Roller Spacing: 273 mm

• Overall Dimensions: Length 2400 mm × Width 1500 mm × Height 350 mm

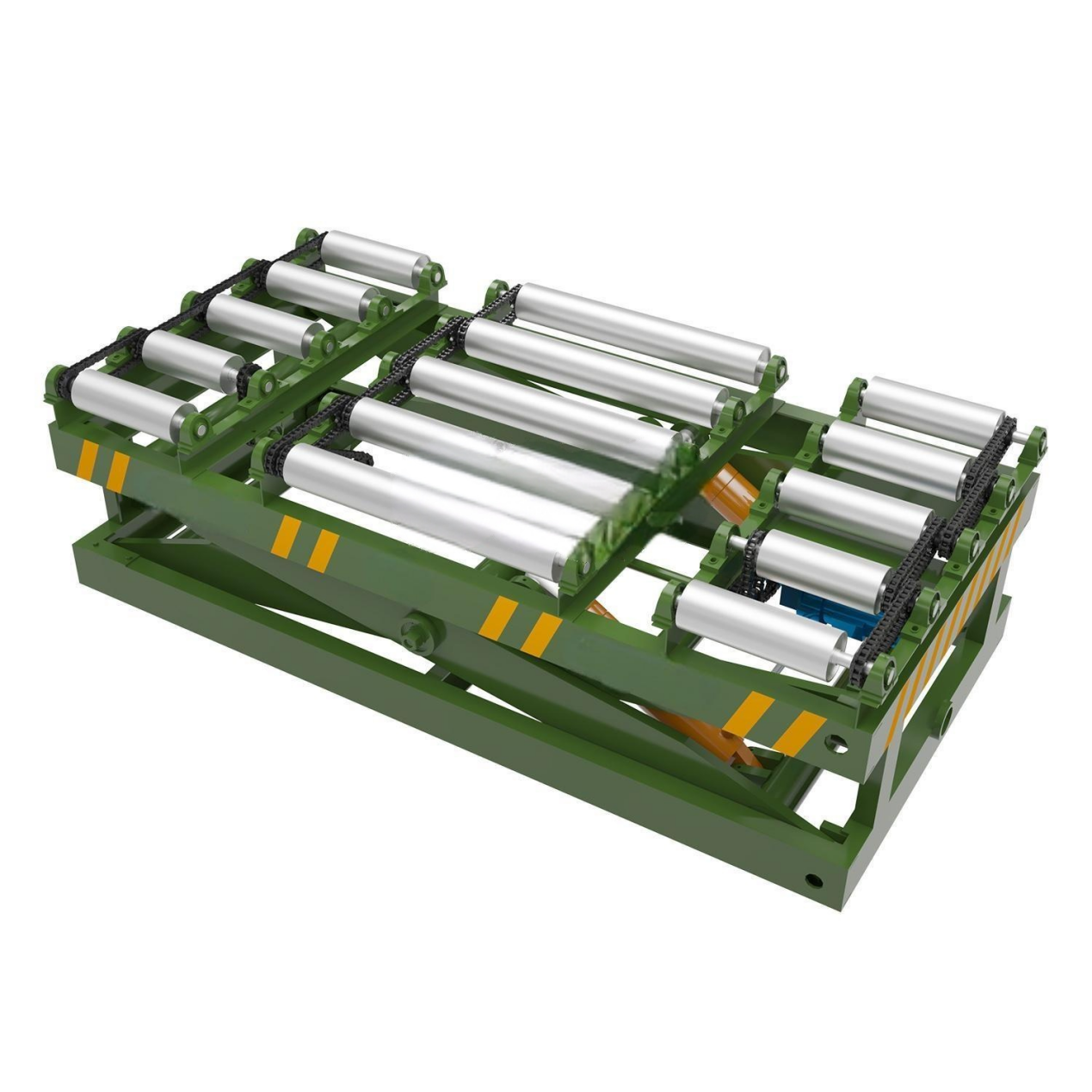

 4x8ft Powered Roller Conveyor (Triple Row of Short Rollers)

• Load Capacity: 3000 kg

• Roller Conveyor Speed: 8.5 meters per minute

• Gear Reducer: BWD0-0.75 kW cycloidal gear reducer

• Roller Dimensions: Diameter 114 mm, Length 300 mm

• Roller Spacing: 273 mm

• Overall Dimensions: Length 2400 mm × Width 1500 mm × Height 350 mm

Why do you need ground rollers in automatic plywood production?

• Essential for smooth transfer of plywood panels between machines to Supports continuous and automated production flow.

• Handles heavy loads of 2000–3000 kg, suitable for large panels

• Reduces manual labor and improves workplace safety

• Increases overall production efficiency by durable and reliable for high-speed plywood manufacturing

• Connects key equipment like cooling racks, trimming, sanding, and stacking systems
