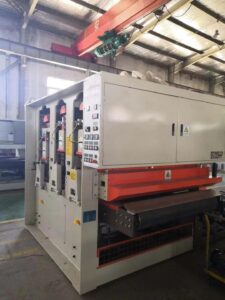

Heavy Duty Plywood Sanding Machine

SPECIFICATION

1. Voltage: 380V or 415V

2. The first head: Motor 37kW, steel roller, diameter 240mm

3. The second head: Motor 22kW, rubber roller

4. The second head: Motor 18.5kW, polish pad

5. Transport reducer: 7.5kW

6. Transport speed: 20-40m/min

7. Lifting motor: 0.37kW

8. Brushing motor: 0.37kW

9. Total motor power: 83.25kW

10. Operating pressure: 0.6MPa (constant)

11. Dust extraction volume: 15000m³

12. Dust extraction speed: 25-30m/s

13. Dimension: 2900*2000*2440mm

14. Weight: 6500kg

Why Choose Heavy Duty Plywood Sanding Machine?

Heavy-duty Sander:

• Frame: Built with thickened steel plates and welded structure, providing high rigidity, excellent stability, and strong vibration resistance. Designed for long-term continuous operation with high durability and long service life.

• Powerful motors: Equipped with high-power main motors for strong sanding capacity. The feeding motor, lifting motor, and other components also feature higher power to ensure stable processing of thick or hard boards.

• Stable performance: Advanced pressing and feeding systems deliver consistent thickness with minimal error.

• Multi-head configuration: Can be equipped with steel rollers, rubber rollers, and polishing pads to achieve rough sanding and fine sanding in a single pass.
