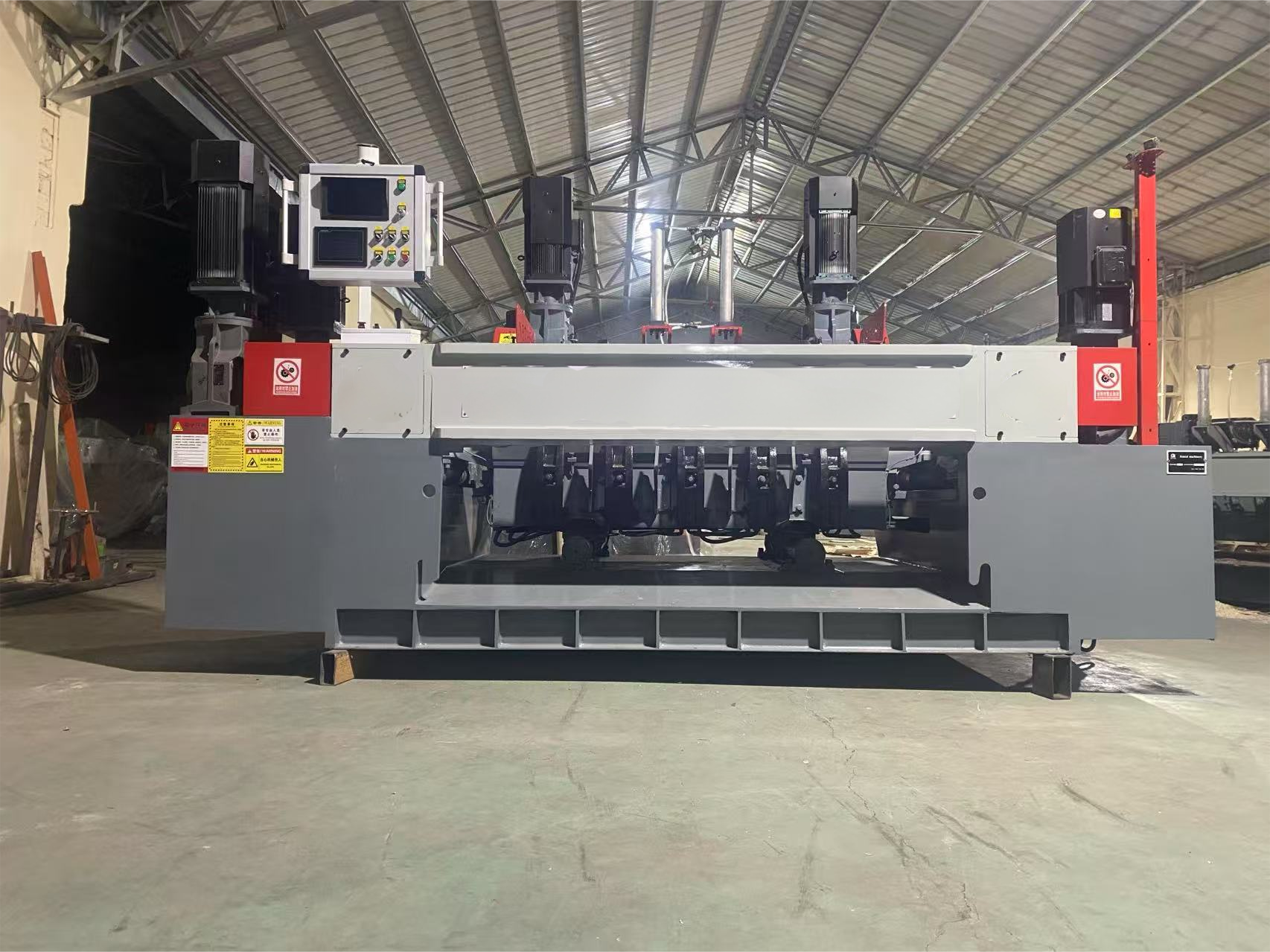

Heavy Duty Wood Veneer Peeling Machine for Hardwood

Technical Parameters

• Double Rollers

  • Diameter: 156 mm (Cross-arranged)

  • Gearbox: R87 Hard-Tooth Surface Reducer

  • Motor: 11 kW Zhongtai Motor × 2 units

• Single Rollers

  • Diameter: 125 mm

  • Gearbox: K87 Hard-Tooth Surface Reducer

  • Motor: 11 kW Zhongtai Motor × 2 units

• Feeding System

  • Gearbox: R87 Hard-Tooth Surface Reducer

  • Motor: 15 kW Servo Motor × 1 unit

• Clipping Knife (Chopper) System

  • Gearbox: RV110 Reducer

  • Motor: 2.2 kW Servo Motor × 1 unit

• Glue Roller

  • Diameter: 230 mm

  • Gearbox: RV110 Reducer

  • Motor: 2.2 kW Zhongtai Motor × 1 unit

• Guiding System

  • Oil-immersed slide bars with precision lead screw

  • Screw Diameter: 116 mm × 1 set

• Hydraulic Knife Clamp System

  • Rotary Knife Size: 1500 × 180 × 16 mm

  • Vertical Knife Size Options: 889 / 965.2 / 1270 mm

 Machine Specifications:

• Double Base Plate: 50#

• Manual Veneer Receiving Table: 5 m + 2 m

• Monitoring System: 1 set (screen + camera)

Electrical Control Cabinet Includes:

• 15 kW Servo Motor for Feeding

• 11 kW Siemens Beide Motors × 2 (Double Rollers)

• 11 kW Siemens Beide Motors × 2 (Single Rollers)

• 4 kW Siemens Beide Motor for Glue Roller

• 4 kW Siemens Beide Motor for Clipping Knife

• 3 kW Siemens Beide Motor for Hydraulic Knife Clamp

• Automatic Lubrication System

• Pneumatic Vibrator

• Monitoring Display Screen

Why Use Heavy-Duty Veneer Peeling Machines for Hardwood?

1. Hardwood Is Tough to Cut

   Woods like Eucalyptus, rubber wood, birch and other hardwood are very dense and hard. This makes them harder to peel. Heavy-duty machines have strong motors and gearboxes that provide the extra power needed to cut through tough material smoothly.

2. Stronger Frame = More Stable Peeling

   Regular machines may shake or move when working on hardwood, causing uneven veneer. Heavy-duty machines have thicker, heavier frames, which keep everything stable and help produce smooth, even sheets.

3. Longer-Lasting Parts

   Peeling hardwood wears out parts faster. That’s why heavy-duty machines use stronger components like ball screws, linear rails, and high-quality bearings to last longer and need less maintenance.

4. Better Feeding System

   Feeding hardwood evenly is not easy. These machines have servo motors that push the wood steadily and powerfully, helping to keep the veneer thickness consistent.

5. Stronger Knife Clamping

   Hardwood puts a lot of force on the knife. Heavy-duty machines use hydraulic knife clamps and reinforced holders to keep the blade steady and reduce vibration, giving a better cutting result.

Standard machines work well for soft to medium woods like poplar or eucalyptus.

But for hard and heavy woods, you need a heavy-duty veneer peeling machine to get good performance, stable quality, and longer machine life.
