L-Type Core Composer

L-Type Core Composer

Model: DHPB-5A1-L

Structure & Build:

• Whole steel plate laser-cut frame for maximum rigidity

• Steel plate thickness of finger joint section: 16mm

Components & Dimensions:

• Transverse jointing section: 4040×2510×1960 mm

• Vertical jointing section: 4900×2300×2155 mm

• Stacker section: 3400×2200×2480 mm

Drives & Motors:

• Transverse jointing: 3×3 KW SINEE servo motors

• Transverse jointing edging & fixed length knife: SINEE servo 3KW each

• Vertical jointing: 3×3 KW SINEE servo motors, fixed length knife hydraulic

• Finger cutting knife: hydraulic, 11 KW

• Stackers, lifts, and conveyors: 0.75–3 KW motors as specified

• Total power: 64.6 KW

Control System:

• PLC: Taiwan TECO

• Touch screen: WECON with long-range control

• Speed adjustable, core veneer adjuster, finished core counter

Additional Features:

• Brush for waste veneer

• Multiple working tables: 4 pcs

• Vertical knives: 2 pcs

• Lift: 1 set

Weight: 9500 kg

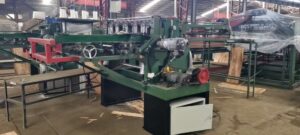

the Core Veneer Produced by L-Type Core Composer Machine

Key Advantages:

• Dual-direction jointing: Horizontal + Vertical for versatile panel production

• High efficiency: Up to 300 finished veneers per hour

• Adjustable speed: 0–35 m/min to suit different veneer thicknesses (1.5–4 mm)

• Robust construction: Whole steel plate laser-cut frame ensures stability and minimal vibration

• Advanced control: PLC + WECON touchscreen with long-range control for easy operation

• Durable motors: Servo and hydraulic drives for precise finger cutting and jointing

• Smart features: Core veneer adjuster, finished core counter, and waste brush for smooth production

Why Do You Need the L-Type Core Composer for Plywood Production

• Faster Production: Combines horizontal and vertical finger jointing in one step, boosting efficiency and saving time.

• Better Quality: Creates flat, strong, and stable cores with uniform thickness, reducing warping or cracks.

• Less Waste: Precise cutting and jointing minimize scrap and make better use of raw materials.

• Consistent Results: Automated servo and hydraulic systems ensure every panel is the same high quality.

• Flexible: Handles different veneer sizes, suitable for furniture boards and decorative plywood.

In short: The L-type machine speeds up production, improves quality, and reduces waste, making plywood manufacturing more efficient and reliable.
