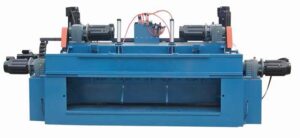

Plywood Face Veneer Peeling Machine

Technical Parameters

• Power of Double Roller: 11 kW × 2, AC Servo Induction Motor

• Power of Single Roller: 11 kW × 2, AC Servo Induction Motor

• Power of Screw Feed: 11 kW, AC Servo Induction Motor

• Power of Rotary Clipper: 5.5 kW, AC Servo Induction Motor

• Power of Rubber Roller: 5.5 kW, AC Induction Motor

• Total Power: 66 kW

• Roller Reducer: Helical Gear Reducer × 4 (Model: R87, Hardened Gear Surface)

• Screw Feed Reducer: Helical Gear Reducer × 1 (Model: R87, Hardened Gear Surface)

• Clipper Reducer: Worm Gear Reducer × 1 (Model: RV130)

• Rubber Roller Reducer: Worm Gear Reducer × 1 (Model: RV130)

• Veneer Output Speed: Adjustable from 30 to 100 m/min

• Blade Size: 2750 × 180 × 16 mm

• Screw Diameter: 90 mm

• Clipper Width: ≥ 400 mm

• Control System:

  • Peeling Speed Adjust System

  • Closed-loop Servo Control

  • PLC + Touch Screen

• Length of the Roller: 2800 mm

What is a Good Face Veneer Peeling Machine?

1.Peeling Thickness Range(the most important factor for a face veneer peeling machine)

Face veneer is usually about 0.2–0.6 mm. The peeling machine should peel the face veneer sheets steadily without tearing.

The thickness should stay within a tight range (±0.03 mm), which means the knife must be controlled very precisely.

the stable knife holder with little vibration is important to keep the thickness consistent.

2.Veneer Quality

The veneer’s quality affects how the plywood looks. It should be smooth and even.

Sharp and accurate blades help keep the natural wood grain and a nice surface.

3.Suitable Wood Types

The machine should match the wood you want to peel, like birch, okoumé, bintangor, keruing, walnut, and so on.

Harder woods need stronger motors and different blade, and roller settings.

Tell the manufacturer your wood type so they can set the machine and blades properly.

4.Speed and Efficiency

Face veneer machines usually run at 20–60 meters per minute.

They focus on being stable and precise, not super fast.

Too high speed can ruin the veneer’s look and quality.
