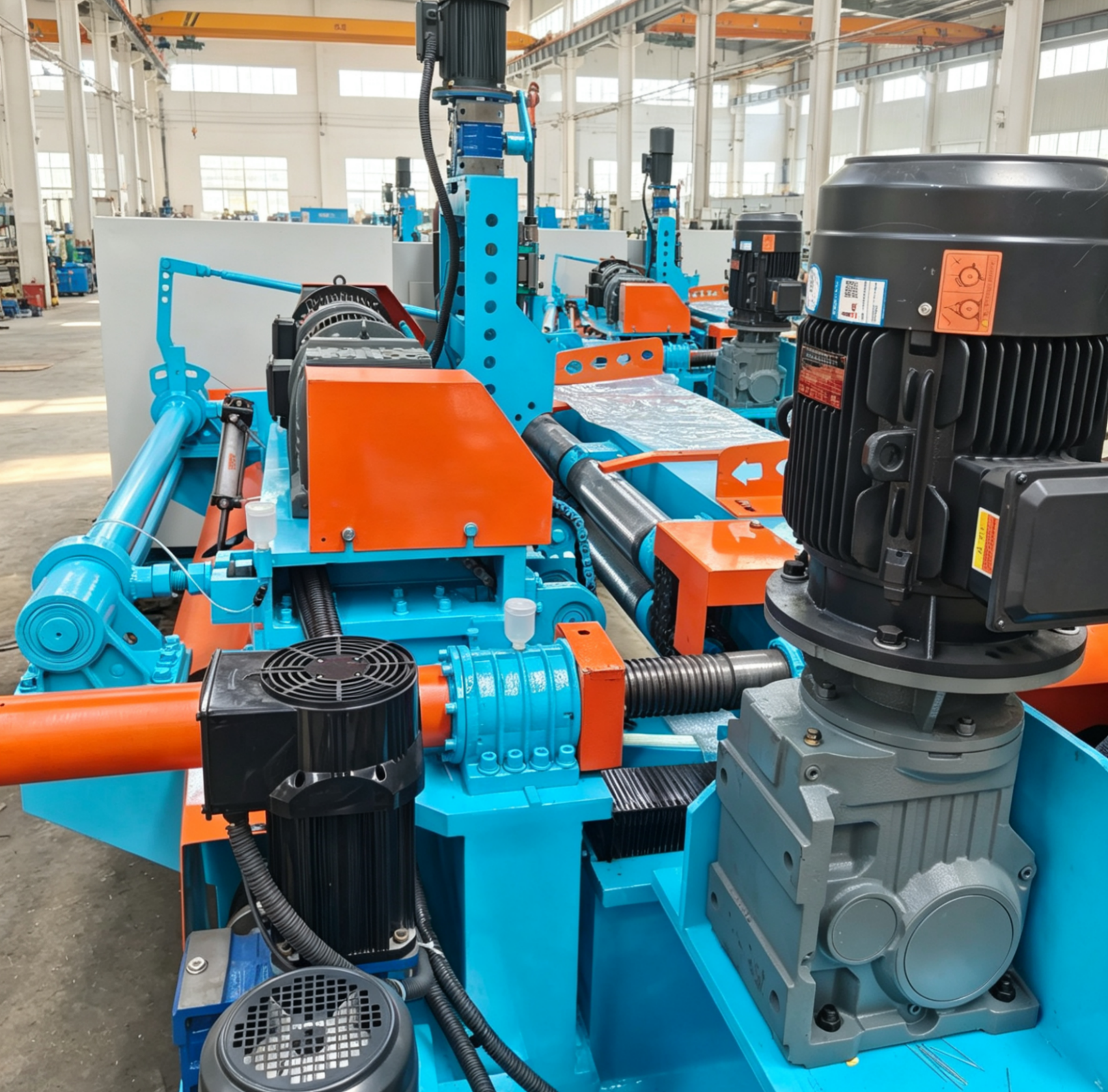

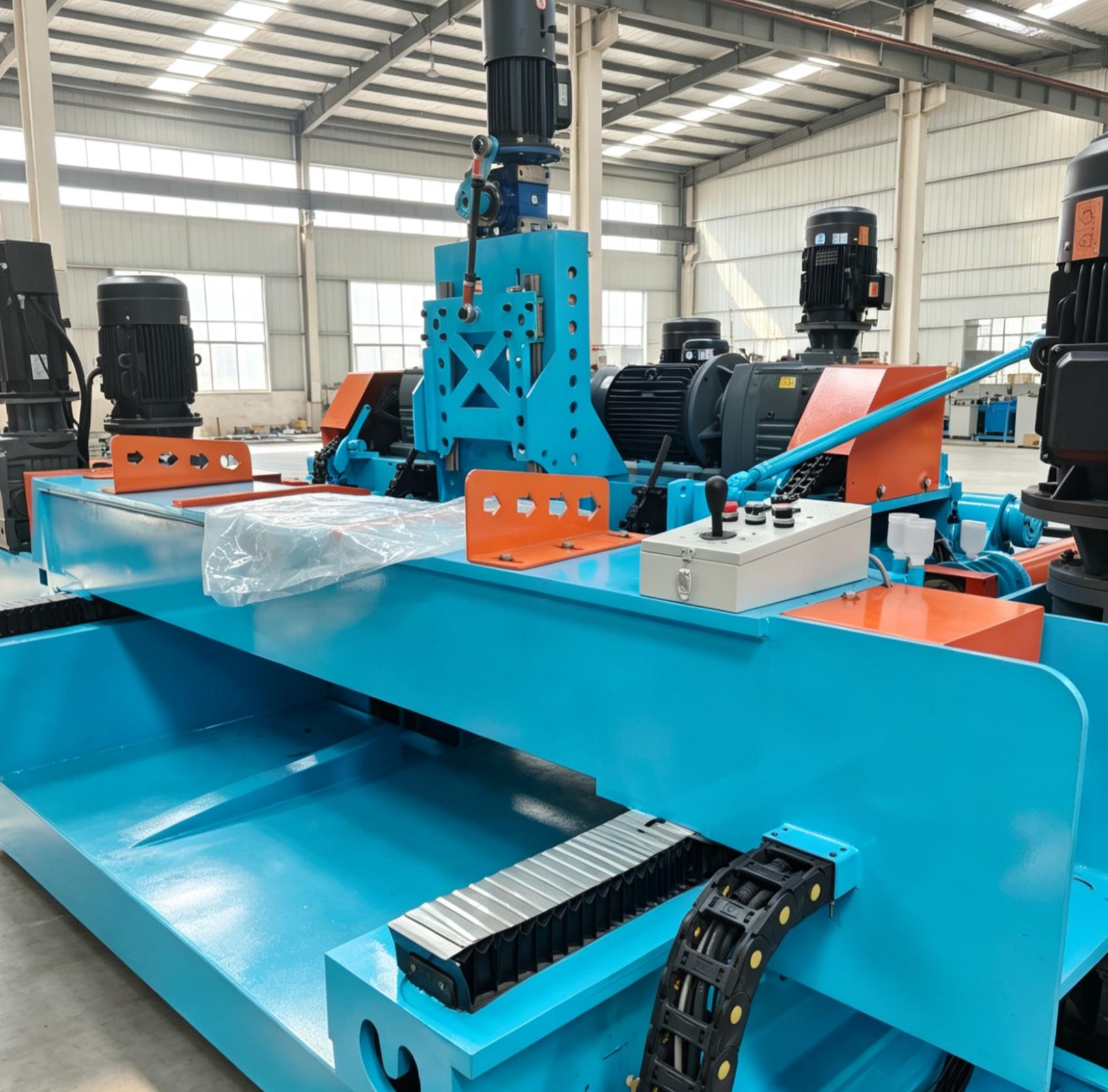

Double-roller Mobile CNC Integrated Veneer Peeling Machine

Double-roller Mobile CNC Integrated Veneer Peeling Machine

• Diâmetro do rolo duplo: 125 mm

  • Gear reducer: K97 Hard Toothed Gear Reducer

  • Motor: 18.5 KW  380 V  50 HZ

  • Quantity: 2 units

• Diâmetro do rolo único: 125 mm

  • Gear reducer: K97 Hard Toothed Gear Reducer

  • Motor: 18.5 KW  380 V  50 HZ

  • Quantity: 2 units

• Alimentação:

  • Gear reducer: K97 Hard Toothed Gear Reducer

  • Motor: 22 KW   Servo Motor

  • Quantity: 1 unit

• Cutter:

  • Gear reducer: RV130

  • Motor: 5.5 KW  380 V  50 HZ   Servo Motor

  • Quantity: 1 unit

• Glue Roller:

  • Gear reducer: RV130

  • Motor: 5.5 KW  380 V  50 HZ

  • Quantity: 1 unit

• Sistema de orientação:

  • Linear guideway-65#: 1 set

  • Adjusting knife and straight-line guide rail-65#: 2 items

• Rotary cutting blade size: 3900*180*16 mm

• thickness: 0.8-2.6 mm

• Maximum Cutting Diameter: 550 mm

• Minimum Residual Diameter: 35 mm

• Velocidade de corte: 0–70 m/min

• Peso total: 18T士0.3T

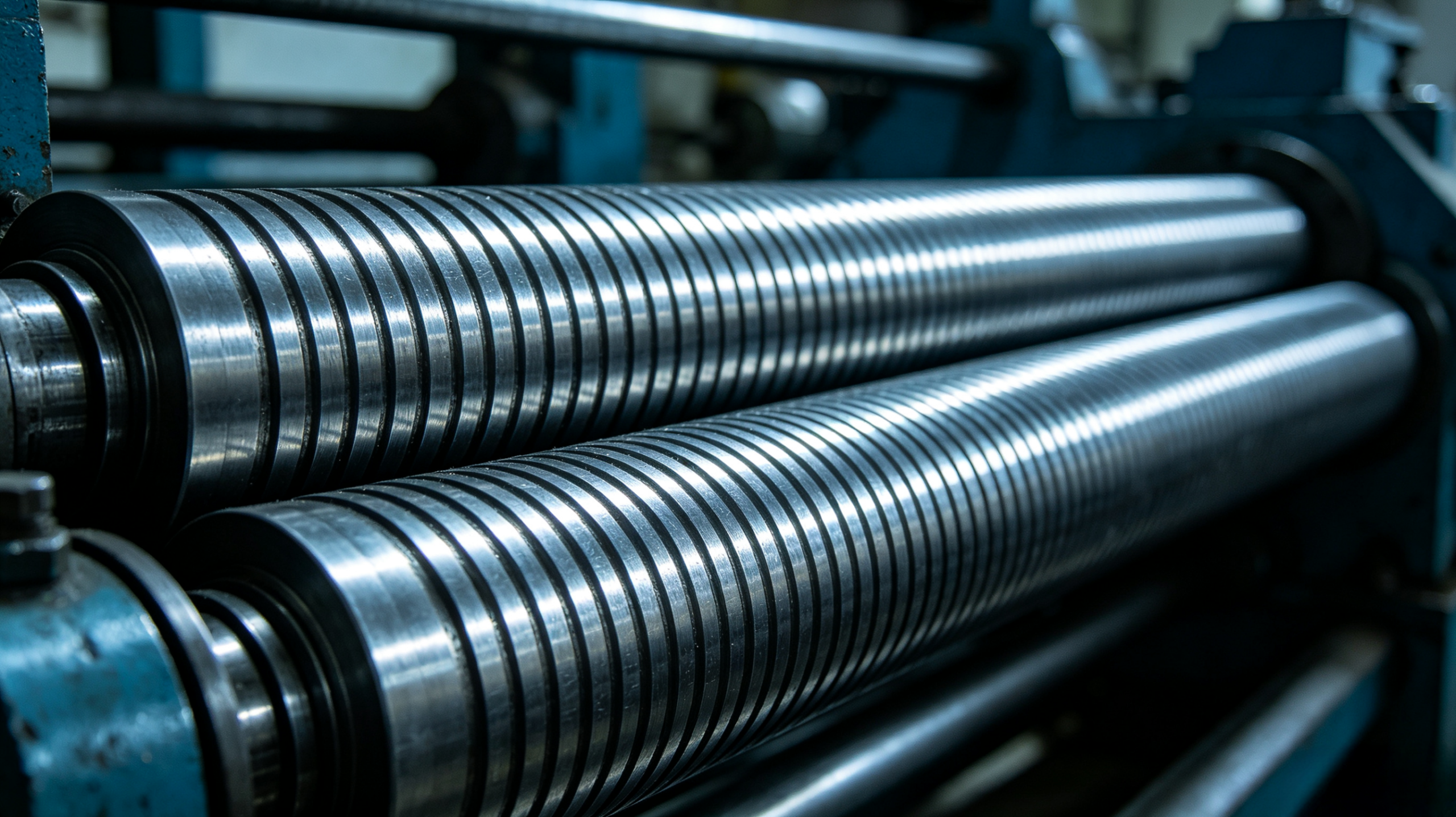

Why are double rolls paired with hard tooth surfaces?

1. High bearing capacity and good shock resistance
2. Long wear resistance and long service life, significantly reducing downtime and maintenance requirements.
3. High transmission efficiency and energy saving
4. Low temperature rise, resistant to high temperatures, suitable for long-term continuous production

Where are the core advantages of the CNC integrated veneer peeling machine?

1. High control thickness accuracy and excellent plate quality
2. High degree of automation, reducing the need for manual labor and lowering costs.
3. The operation is simple and easy to master, and the debugging process is efficient.
4. Operates stably and is compatible with continuous production.
5. Flexible speed control, suitable for various raw materials
6. Comprehensive efficiency improvement, higher production capacity
