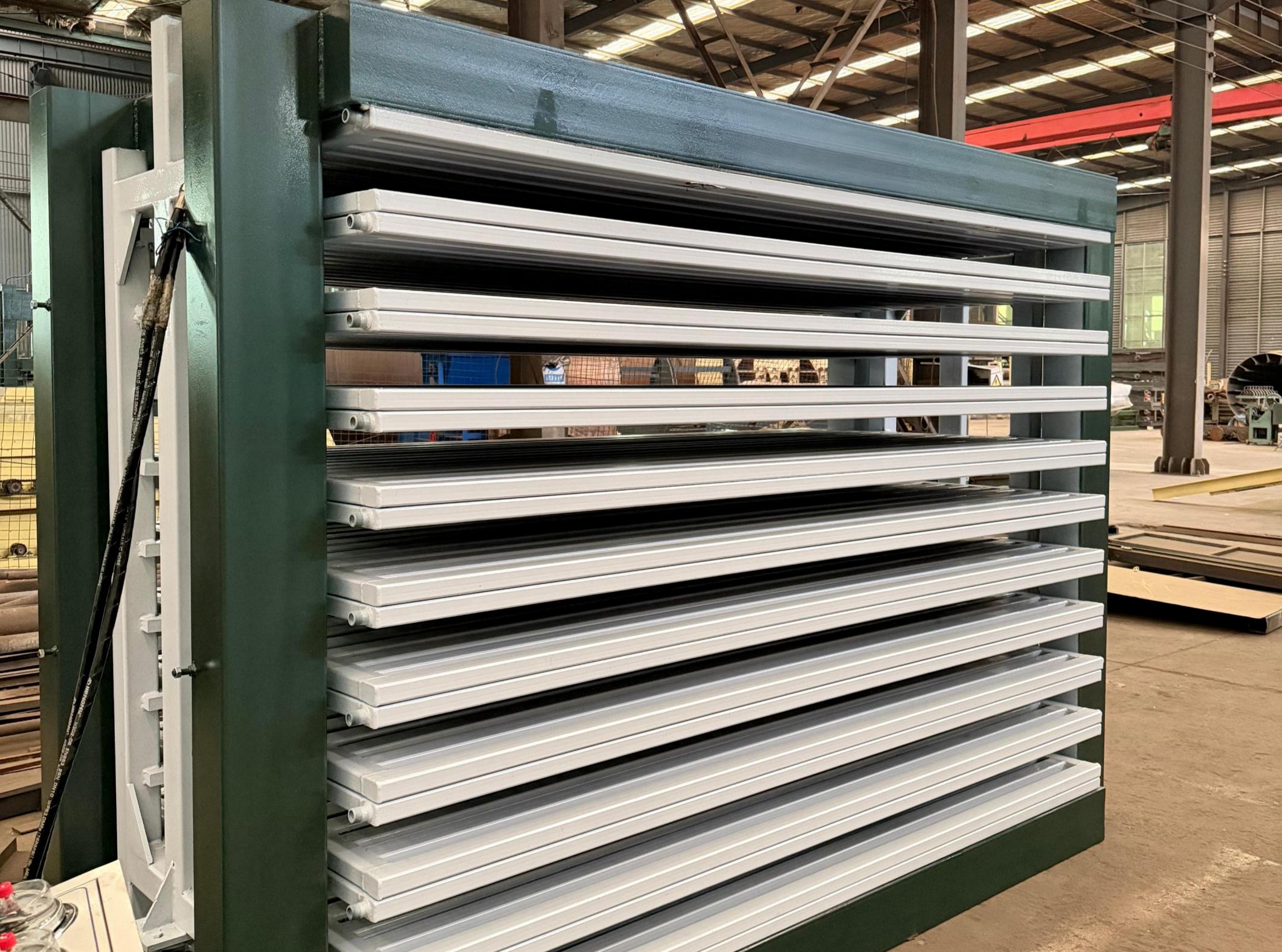

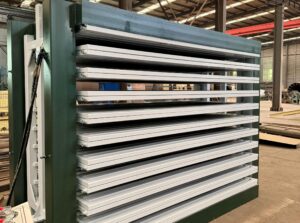

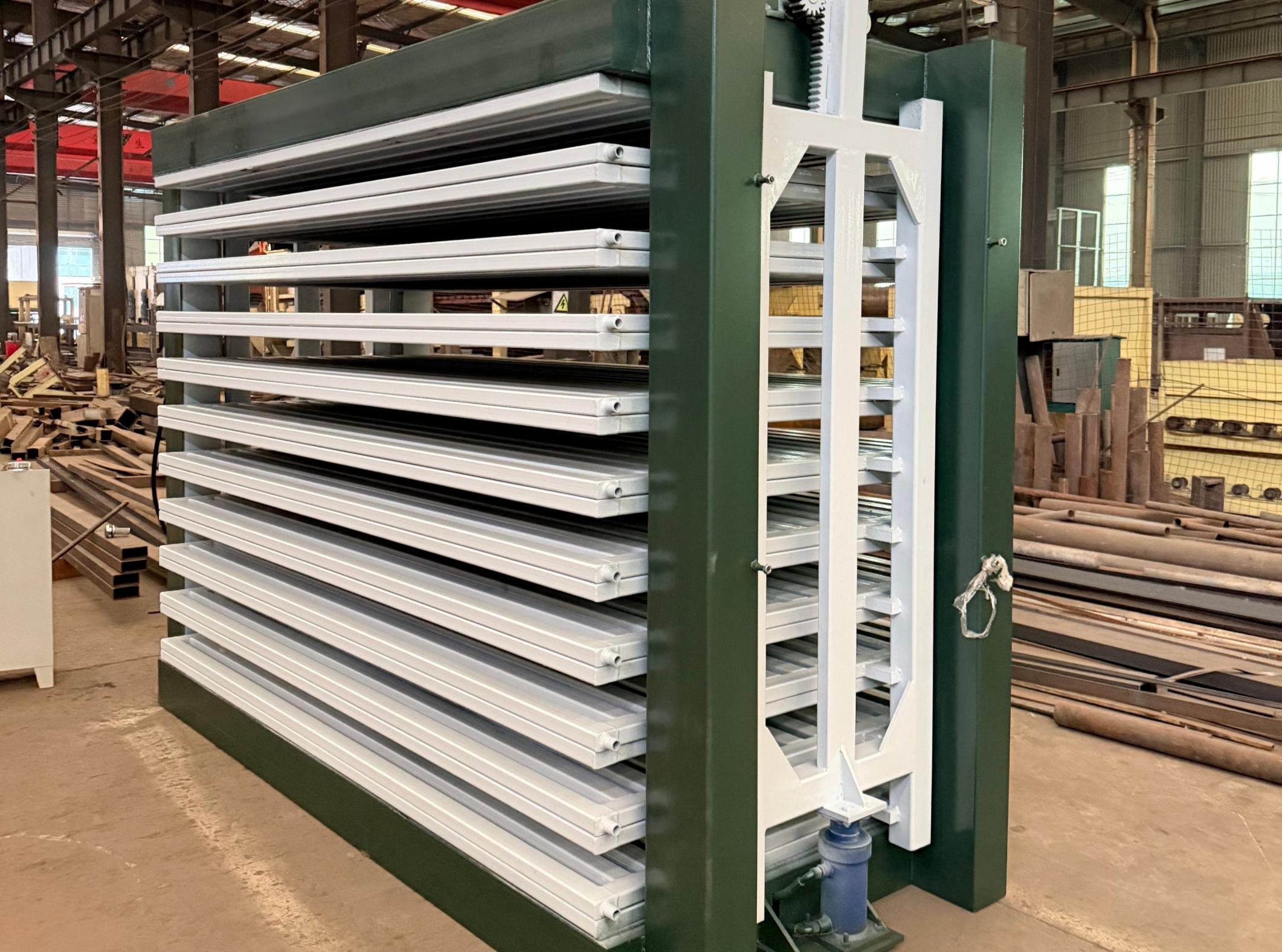

80-Ton 10-Layer Core Veneer Hot-pressing Dryer

Suitable for: birch, ash, eucalyptus, poplar, pine, etc.
Capacidad de secado: 7~8 m³/h
Initial moisture: 30-90%
Final moisture: setpoint
Heating Medium: Thermal oil or steam
Drying Temperature: 120 ℃~200 ℃

Main Parameters of Dryer

Artículo	Parameter
Rated Pressure (kN)	80 ton
Feeding Direction	Horizontal loading
Number of Layers	15
Clearance Between Layers (mm)	70
Quantity of Hot Platens	16 pcs

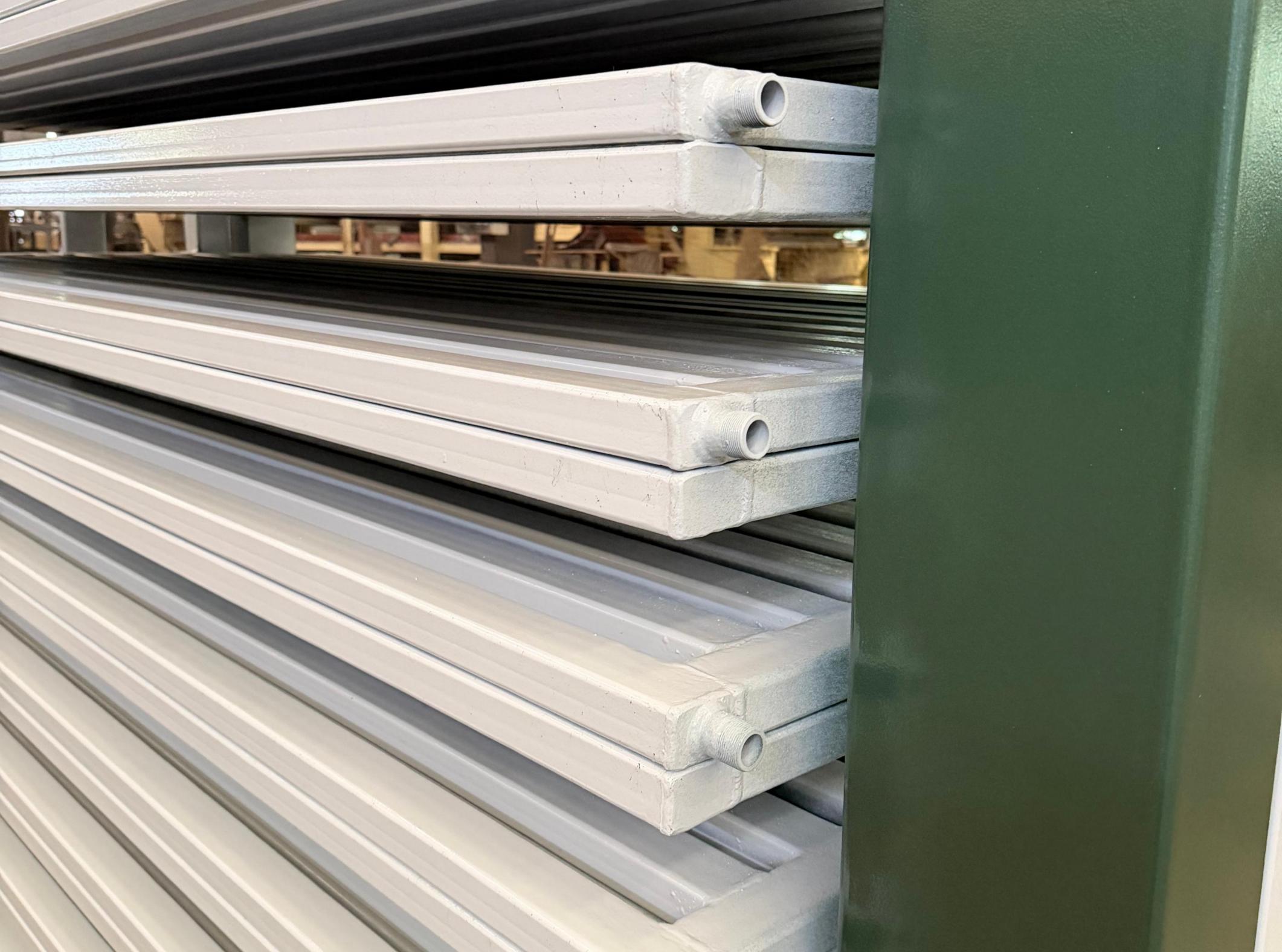

Platen Dimension (mm)	2700×1370×42, double inlet & double outlet, double-side slide chute
Number of Plunger Cylinders	2 pcs
Cylinder Diameter (mm)	120, Wuxi made
Stroke (mm)	1050
Max Working Pressure (MPa)	≤15
Closing Time (s)	20s

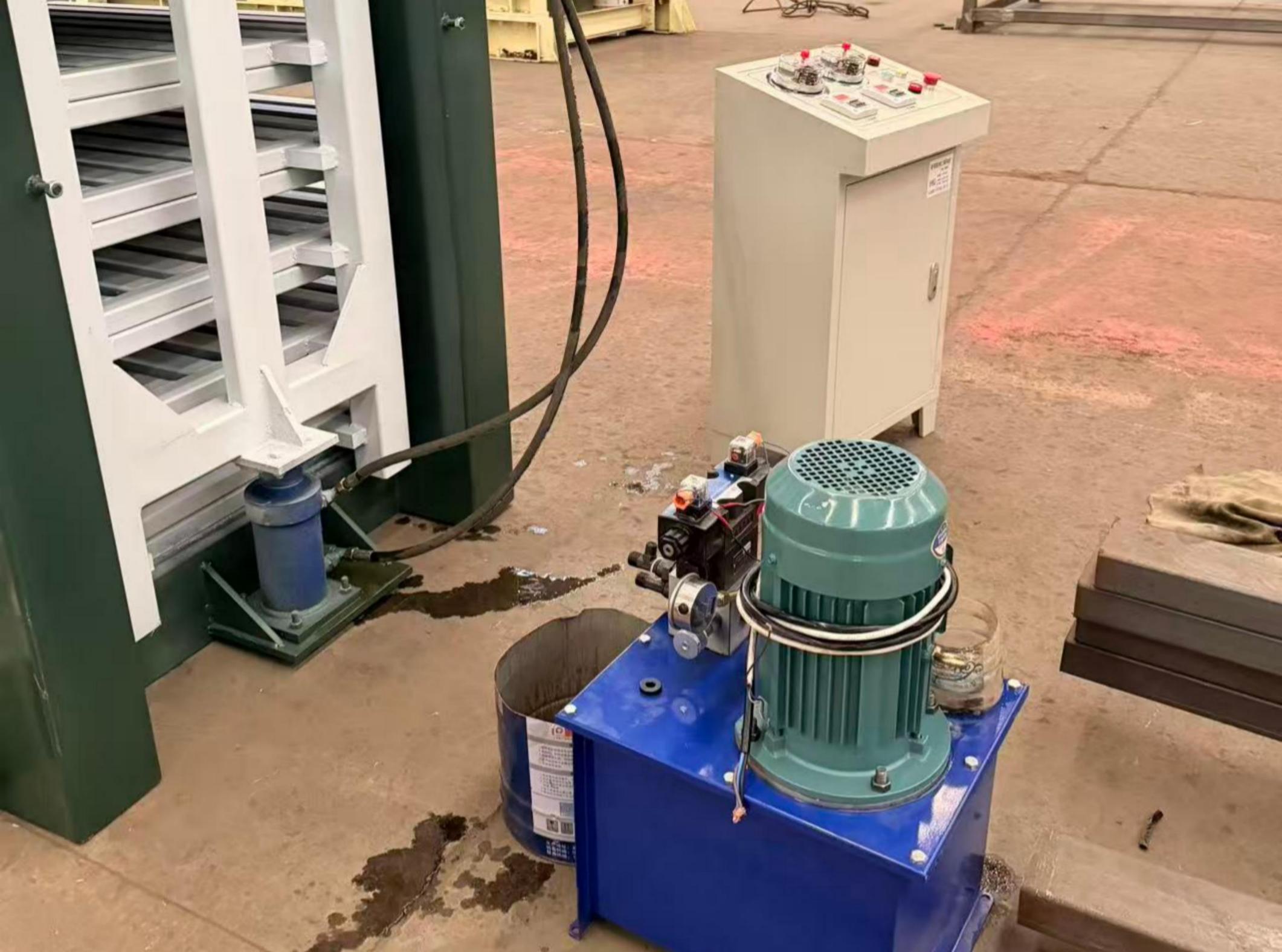

Low Pressure Pump	65 L/min, 1 set; Max pressure ≤3MPa, Power:15kW
High Pressure Pump & Motor	Flow:16 L/min, Motor Power:3kW

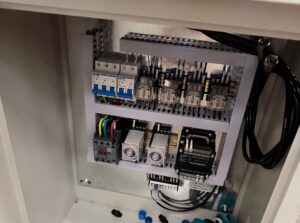

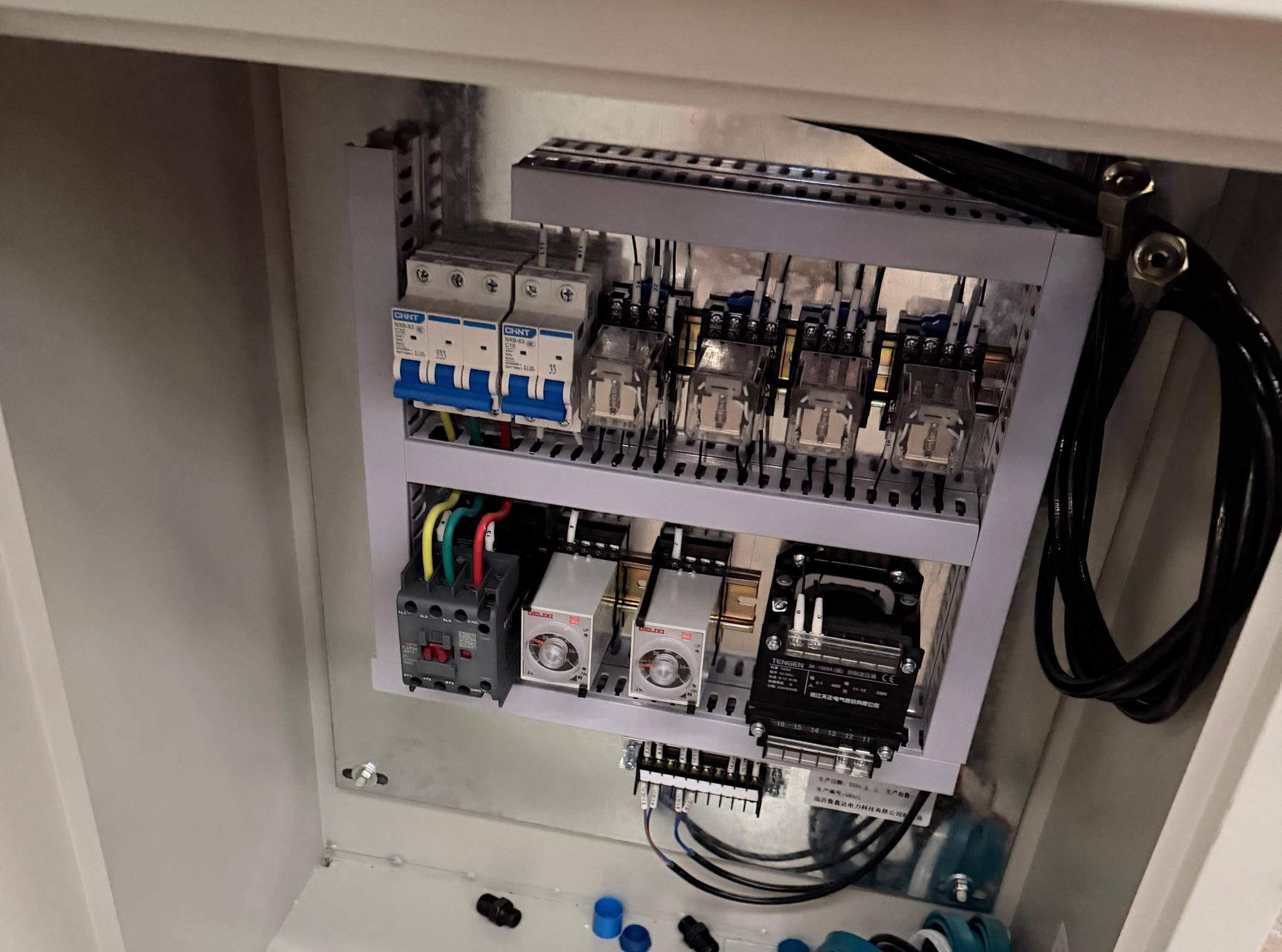

Sistema de control	Full-auto control cabinet, timing by sections, moisture exhausting & pressure relief; vertical touch screen control cabinet
Blank Specific Pressure (kgf/cm)	10
Marco	150×200 standard square tube, 8mm thickness
Overall Dimension (mm)	3300×1370×2450
Steel Plate Thickness (mm)	8
Upper & Lower Beam (mm)	200 each
Movable Beam (mm)	200
Support Leg Width (mm)	200
Approximate Weight	20 tons

Advantages of Hot Press Dryer

I. Superior Drying Quality & Flat Veneer Surface

Press forming while drying: The reject rate of plywood caused by delamination and glue separation drops by over 30%.
Uniform and controllable moisture content: Direct heat conduction via hot plates keeps the whole veneer moisture error within ±1%.
Lower breakage loss: Raw material utilization rises by 5%~8%, cutting raw material costs for veneer peeling.

II. Energy-saving & Power-efficient, Much Higher Thermal Efficiency Than Mesh Belt Dryers

Direct contact heat transfer with low heat loss: Thermal efficiency is approximately 47% higher than mesh belt drying equipment.
Ultra-low power consumption: Low daily electricity consumption per unit; compatible with existing boilers in old factories to save boiler investment cost.
Waste wood chip heating available: Heat generated from burning wood scraps is fed into boilers to further reduce fuel expenses.

III. Fast Drying Speed & Stable Batch Output, Matching High Capacity of Veneer Peeling Machines

Short drying cycle: Realize seamless connection between veneer peeling and drying production lines.
Mass production via multi-layer stacking: Production capacity can be flexibly expanded by adding layers, suitable for both small and large plywood factories.

Why Choose Our Hot Press Dryer?

I. Small Footprint & Low Workshop Investment, Ideal for Medium & Small Factories

The machine occupies only around 7㎡ floor area, with an extra 25㎡ space reserved for operation.

II. Low Labor Cost, Easy Operation & Convenient Maintenance

Labor saving: Two operators can manage three units with simple loading and unloading procedures.
Low failure rate & affordable maintenance: Annual maintenance cost is roughly 1/4 of that for mesh belt dryers.

III. Strong Versatility for Veneers of Various Materials & Thicknesses

Wide material compatibility: Works for multiple wood species and various veneer thicknesses.
Flexible heating source: Dual heating options of steam and thermal oil, adaptable for heating system renovation of new and existing factories.
