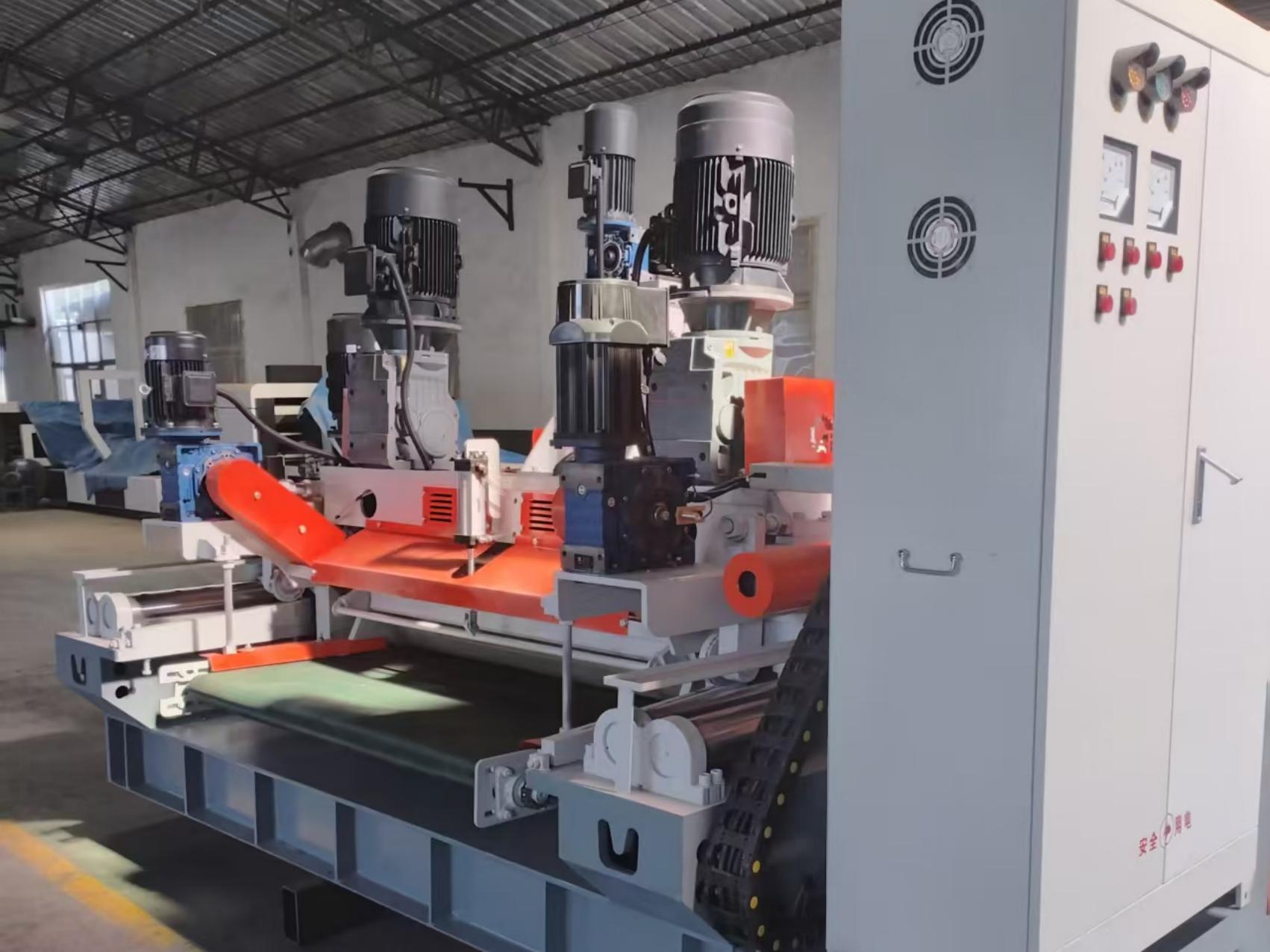

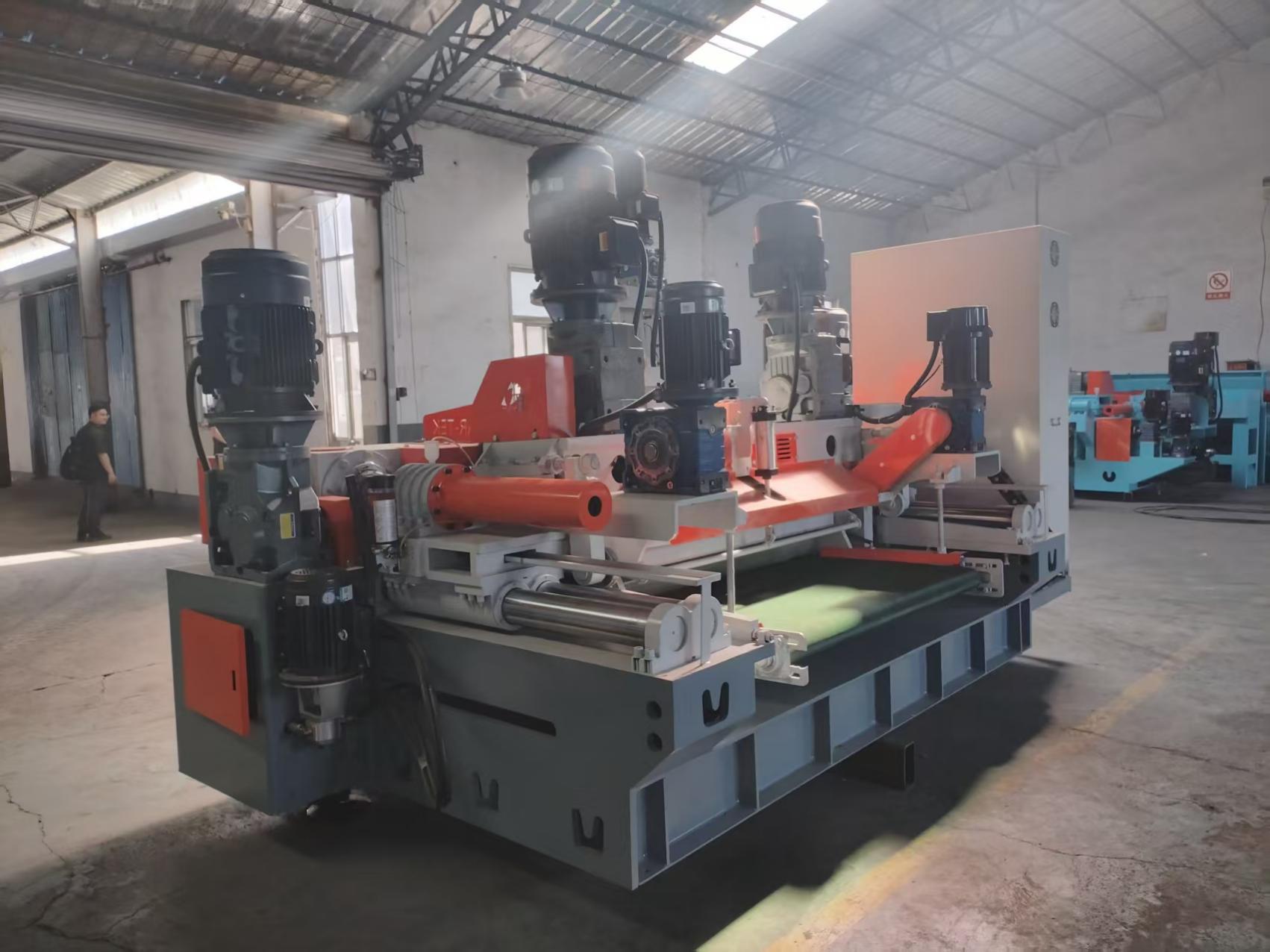

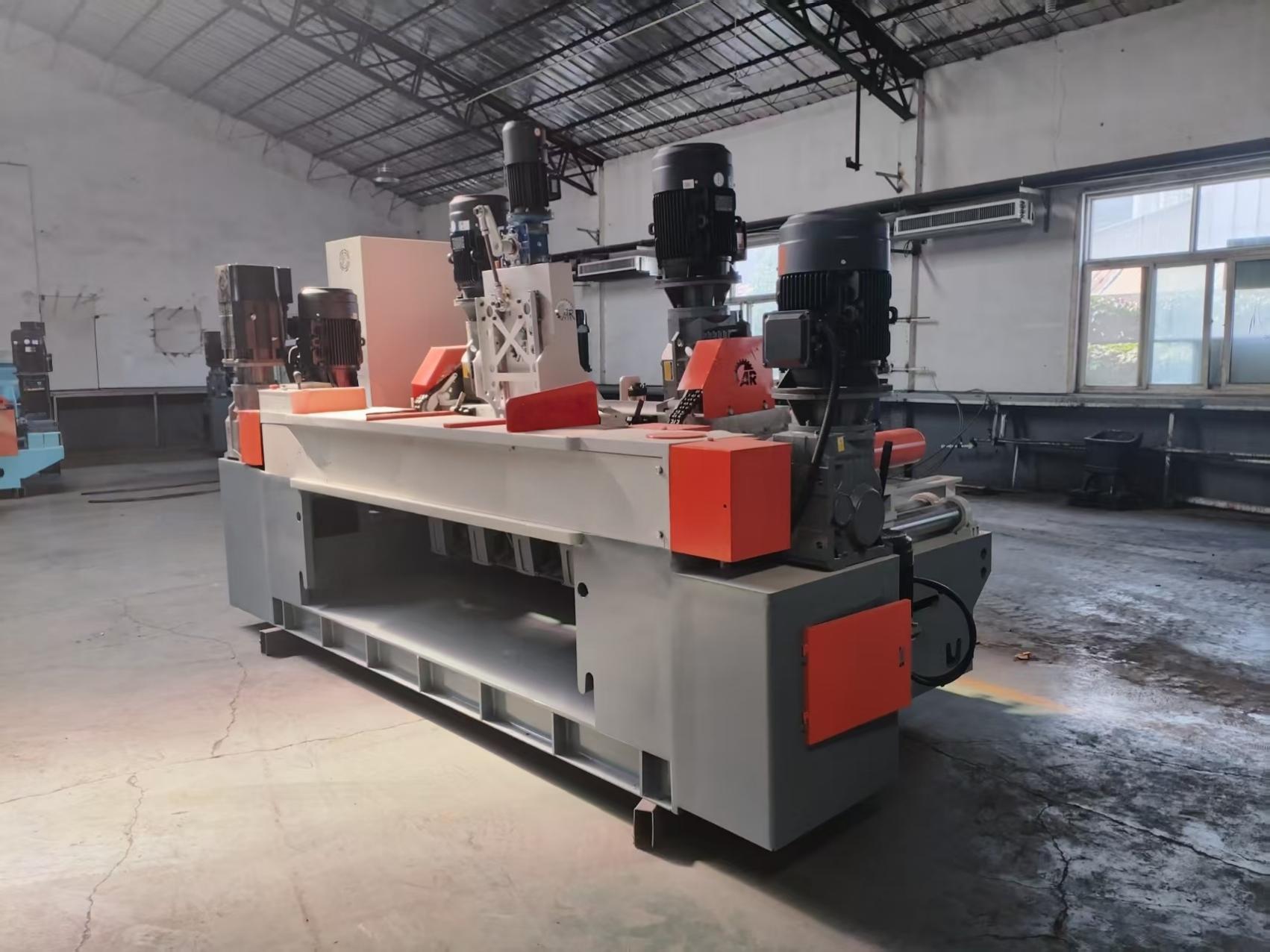

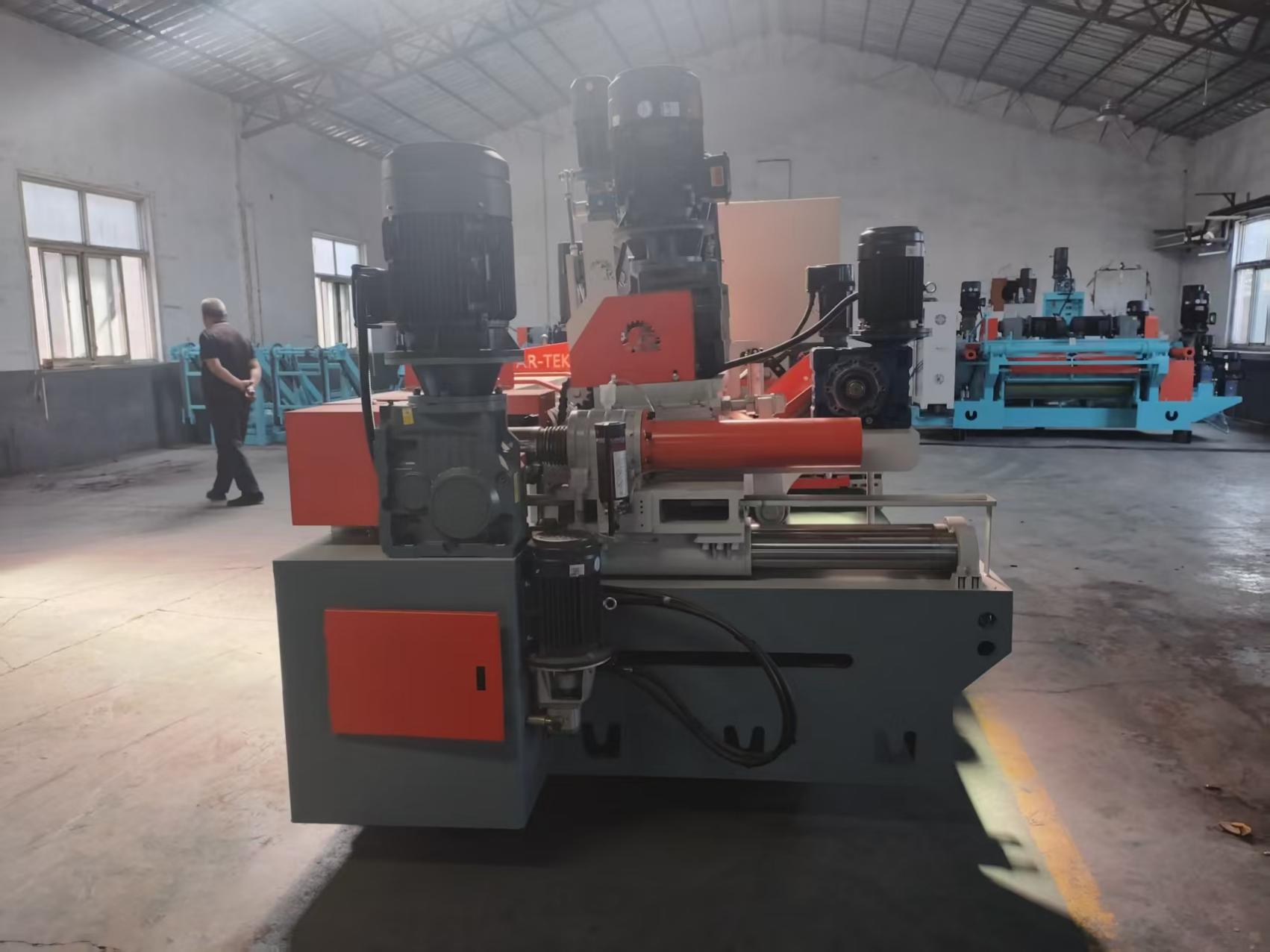

CNC Moving Carriage Integrated Veneer Peeling Machine

Advantages：

Equipped with variable frequency drive for strong overload resistance.
Adopts heavy-duty steel structure, high-rigidity tool carriage and thickened bed frame.
Fitted with PLC and servo motor, as well as human-machine interface, supporting real-time monitoring and automatic alarm.
Low noise and low vibration, capable of 16 hours of continuous trouble-free operation.

This integrated moving-carriage veneer peeling machine features stable operation, high precision, excellent board surface and high efficiency, with low labor and maintenance costs. It is especially ideal for plywood and veneer production lines that require high uniformity, high material utilization and continuous production.It is an excellent choice for factory equipment upgrading to boost productivity and increase profits!

Parámetros técnicos

CNC Moving Carriage Integrated Veneer Peeling Machine
Modelo	Configuration	Power	Cantidad

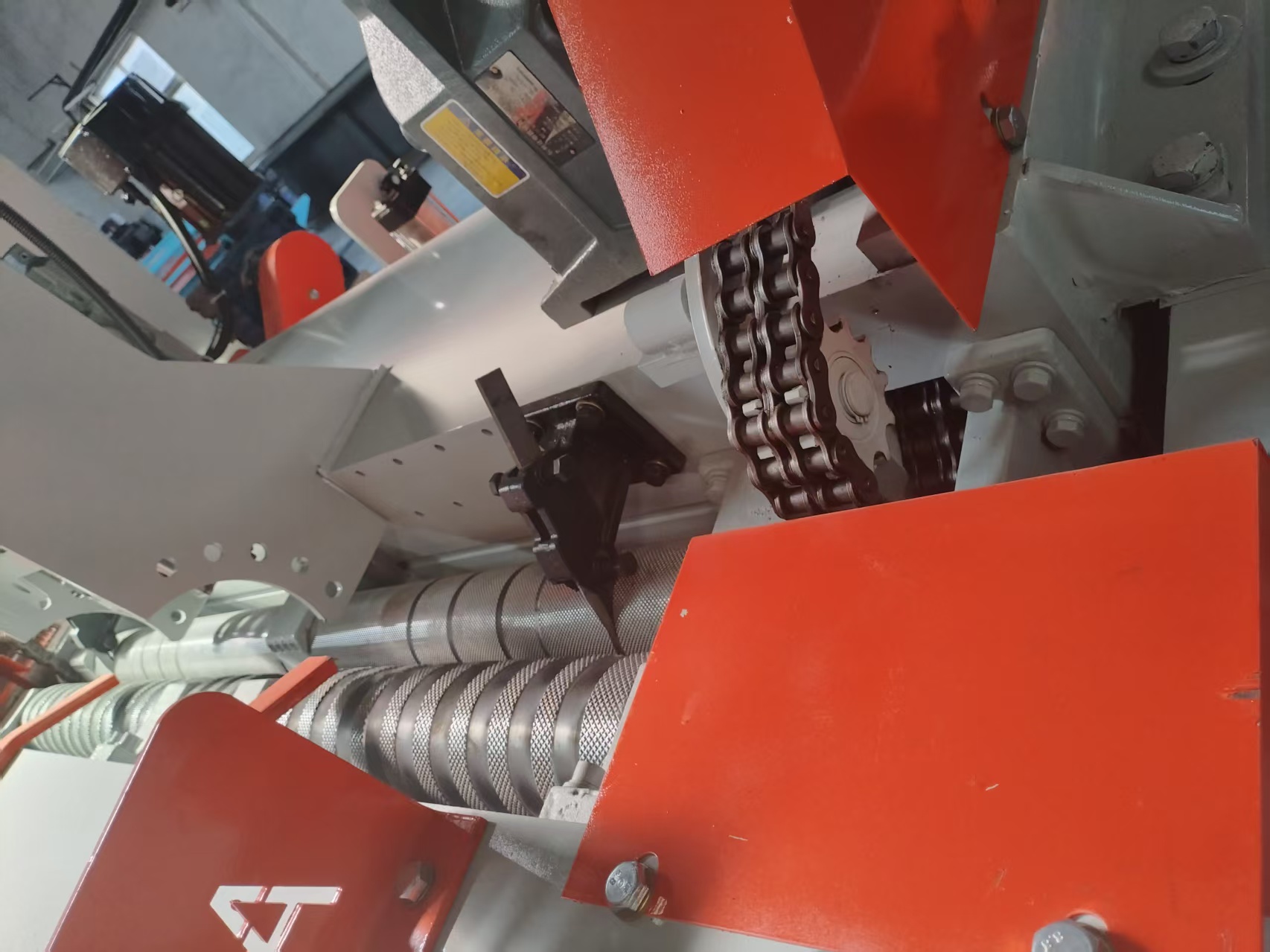

Double Roller Diameter: 125mm	K87 Helical Gear Reducer	11 KW Motor	2 units
Single Roller Diameter: 112mm	K87 Helical Gear Reducer	11 KW Motor	2 units
Alimentación	K87 Helical Gear Reducer	15 KW Servo Motor	1 unit
Cortador	RV110 Gear Reducer	2.2 KW Servo Motor	1 unit
Rodillo adhesivo	RV110Gear Reducer	2.2KW Motor	1 unit
Sistema de guía	Oil-immersed slide bars	1 set
	Lead screw diameter: 105mm (double pistons)
Panel Box:
Feeding: 18.5 KW Servo Motor
Double Roller: 30 KW ×1
Single Roller: 30 KW ×1
Cutter: 4 KW Servo Motor
Glue Roller: 4 KW
Manual Board Support: 2.2 KW
Electric hammer, pneumatic system
PLC: Xinje (1 unit) and Inovance / Kevo (1 unit each)Veneer Cutting Thickness: 1.0–3.8 mm
Maximum Cutting Diameter: 550 mm	Minimum Residual Diameter: 26 mm	Cutting Speed: 0–100 m/min	Total Weight: 8.5T

Why choose this high-precision veneer peeling machine?

Uniform veneer thickness with tiny tolerance, high yield rate.
Smooth surface, no burrs or wavy edges.
Low vibration & low noise, stable long-term operation.
High wood utilization rate, lower production cost.
Flexible for various thickness, easy adjustment.
16-hour continuous trouble-free running.

High-precision CNC veneer peeling machines can limit the residual wood core diameter to 1.5 units. This greatly reduces the generation of broken veneers and waste wood cores, cutting the loss rate in the peeling process by 15% to 25%. The smoothness and uniformity of veneers are critical to the flatness of one-step forming, and meanwhile reduce the wear of sanding belts in secondary polishing by 30%.

How does the high-precision peeling machine solve some problems of hot press?

High thickness accuracy → Even hot pressing pressure & shorter cycle time.
Flat and smooth veneer surface → Uniform glue application & faster bonding during hot pressing.
Uniform moisture content & low internal stress → Less blistering and deformation after hot pressing.
High length/width tolerance of veneer → Accurate lay-up & fewer defects in hot pressing.
Overall Quantitative Benefits:

Hot pressing cycle reduced by 15–25%
First-pass yield increased by 8–15%
Glue consumption cut by 5–12%
Sanding cost reduced by 30%
Energy consumption lowered by 10–20%

Improve the yield of hot-pressed products. The board surface is smooth, flat and uniform without pits and dents. It uses less adhesive, allows moisture to escape easily during hot pressing, and effectively prevents blistering and delamination, thus reducing the defective rate of boards.
