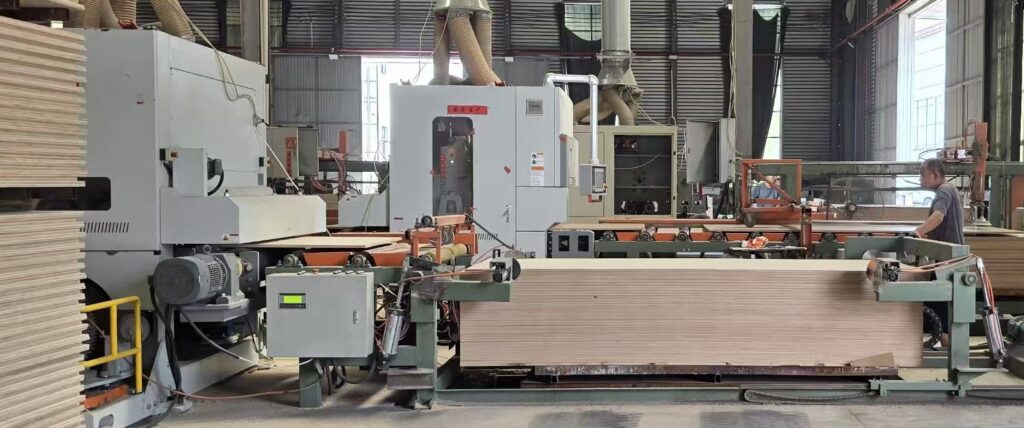

Why Do You Need the Plywood Sanding Machine?
After hot pressing, plywood is not always perfectly flat or even. The surface may have glue spots, dirt, or small marks. A sanding machine helps fix these problems. It smooths out the surface, makes the board flat and even, and removes any marks. This makes the plywood look better and easier for painting and lamination.

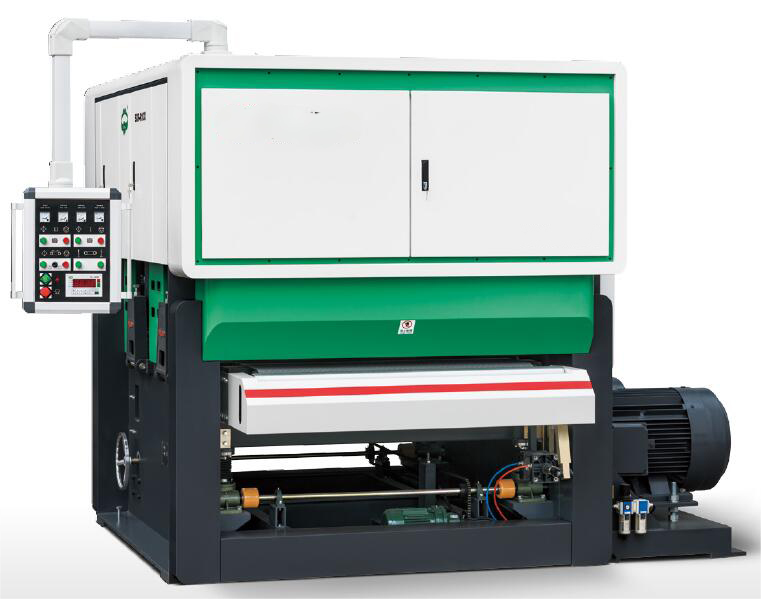

What Are the Key Components and Functions of Plywood Sanding Machines
1. Feeding System
The feeding system of sanding machine generally consists of feeding motor, conveyor rollers/belts, and pressure device. The key is to ensure stable feeding, adjustable speed, and uniform pressure, which are essential for maintaining sanding precision and efficiency
- Feeding Motor: Provides the driving power, typically rated at 7.5 KW or 11 KW and equipped with a reducer. It supports variable frequency (VFD) speed control, allowing adjustment of the feeding speed according to the plywood board thickness and material. The feeding speed is adjustable within a range of 8–40 meters per minute.
- Conveyor Rollers: Divided into drive rollers and idle rollers. The drive rollers are connected to the motor to provide power, pulling the boards into the sanding zone. The idle rollers are not motor-driven; they serve to support and guide the boards, ensuring they move straight, stable, and without deviation.
Common Materials of conveyor Rollers: Steel rollers and rubber rollers.
Steel Rollers: Solid with hardened surface, offering high hardness, strong rigidity, and wear resistance. They are mainly used for coarse sanding and calibration sanding, capable of quickly removing excess material from the board surface and ensuring uniform thickness. However, the hard surface may leave sanding marks or pressure marks, making them unsuitable for fine sanding where surface quality is critical.
Rubber Rollers: Flexible with high friction and gentle pressure, protecting the board surface and ensuring good contact between the sanding belt and the board. They provide a smooth and delicate surface finish, making them ideal for fine sanding applications.
- Pressure Device: Ensures that the boards remain firmly pressed against the conveyor belt or rollers, preventing warping or vibration, and maintaining thickness accuracy and surface flatness. Pressure devices are used throughout the entire sanding process. Typically at the infeed, a pressure roller prevents the board from lifting as it enters the sanding machine,and Before and after the sanding belt, air cushions or pressure rollers keep the board firmly pressed during sanding,finally At the outfeed, auxiliary pressure rollers ensure smooth board discharge.
Common types of pressure devices include pressure rollers and air cushions.
Pressure Rollers: Usually made of steel rollers (high hardness) or rubber rollers (high friction, soft surface). Pressure is applied via springs or cylinders (adjustable pressure). Typical operation:
Board enters the sanding machine → drive rollers pull it forward, while pressure rollers press from above to prevent lifting or deviation.During passage under the sanding belt → pressure rollers maintain firm contact with the conveyor, ensuring uniform thickness.At the outfeed → rear pressure rollers continue pressing to prevent vibration.Pressure Rollers: Typically steel rollers (high hardness) or rubber rollers (high friction, soft surface), with pressure applied via springs or cylinders (adjustable). They are most commonly used for plywood cores, blockboard, and solid wood substrates.
Air Cushion / Air Pad: Mounted above the sanding belt, the air cushion evenly transfers pressure to the board surface,keeping the board steadily pressed on the conveyor. This system is especially suitable for fine sanding of thin panels, high-end furniture boards, and decorative panels.
Note: air cushions are wear parts, prone to aging and leaks over time, requiring regular replacement.
2. Sanding Unit
The sanding unit includes abrasive belts or wheels, sanding rollers, pressure devices, and the drive system. It is the core process component of the sanding machine, responsible for calibrating board thickness, leveling the surface, and smoothing, thereby controlling sanding precision and efficiency.
After the boards are fed into the sanding zone by the feeding system, the abrasive belt or wheel rotates, creating friction with the board surface to remove high spots and level the thickness. The pressure device ensures that the board remains in close contact with the abrasive, maintaining a flat, ripple-free surface. The sanding effect can be controlled by adjusting the belt speed, grit size, and pressure.
Sanding is divided into Calibration Sanding and Finishing Sanding:
Finishing Sanding: Typically uses rubber rollers with fine abrasive belts. It removes a small amount of material, produces a smooth surface, and is suitable for thin boards, high-end furniture panels, and decorative panels for precision finishing.
Calibration Sanding: Usually uses steel rollers with coarse abrasive belts. It removes a larger amount of material, ensures uniform thickness, and is commonly applied to plywood cores, blockboard, and solid wood substrates.
3. Sanding Belt System
The Sanding belt system is the direct processing core of the sanding machine, determining the material removal efficiency, thickness accuracy, and surface smoothness of the boards.
Sanding belts are categorized into three types: coarse, medium, and fine.
Coarse (P60–P120): For calibration sanding or defect removal.
Medium (P150–P220): For surface leveling.
Fine (P240–P400): For finishing sanding or decorative panels.
The sanding belt needs adjustment and guiding devices to keep it tight and running straight. It has automatic tensioning and tracking systems to make sure the belt moves smoothly and the sanding is even across the board.
4. Dust Collection System
During sanding, the friction between the sanding belt and the board generates a large amount of wood chips, dust, and fine particles. Without a dust collection system, dust can accumulate on the board surface, causing scratches, sanding marks, or unevenness. Dust can also build up on the belt or sanding rollers, reducing sanding quality and efficiency. If dust enters the motor, drive system, or fan, it can cause overheating, wear, or failure, increasing maintenance costs and shortening the machine’s lifespan. Dust floating in the air can irritate the respiratory system, pose occupational health risks (such as pneumoconiosis), and increase the risk of fire or explosion.
A sanding machine’s dust collection system includes dust hoods, ducts, fans, dust collectors, and filters. During sanding:
- The dust hood collects dust generated by the sanding belt.
- The fan creates suction, pulling the dust into the ducts.
- The ducts transport the dust to the dust collector, where it is separated and collected.
- Filtered air is released, keeping the workshop clean.
There are two main types of dust collection systems:
- Single-Machine System: Collects dust from one sanding machine, suitable for small machines or standalone production.
- Centralized System: Multiple sanding machines share one set of ducts and a fan, suitable for production lines or large workshops.
When designing ductwork, minimize bends to maintain stable suction and efficient dust removal.
5. Electrical Control System
The sanding machine’s electrical control system is its “brain and nervous system”, using electrical and electronic components to control the machine’s operations, including start, stop, speed adjustment, pressure control, belt movement, and safety protection.
- The operator uses the HMI or buttons to send commands such as start, stop, or speed changes.
- The PLC receives these signals and controls the motors and pressure devices according to the program.
- The variable frequency drive (VFD) controls the main motor, adjusting the belt speed and feeding speed.
- Sensors provide real-time feedback to monitor belt tension, board position, and pressure, ensuring precise and stable sanding.
6. Safety Devices
The sanding machine is equipped with safety devices to prevent personal injury, equipment damage, or fire hazards.
Common safety features include:
- Emergency stop switches
- Door or cover interlocks
- Overload protection
- Leakage (earth fault) protection
- Belt breakage protection
- Dust explosion prevention
- Sensor-based safety monitoring
These systems ensure that the machine operates safely and reliably during sanding operations.
7.Machine Frame
The machine frame is the main supporting structure of the sanding machine, holding all key components and ensuring stability and precision.
A strong frame improves the machine’s vibration resistance, preventing shaking during feeding and sanding. It also ensures that the sanding unit and feeding system are properly aligned, resulting in uniform board thickness and a smooth surface.
There are two common types of frames:
- Welded steel plate frame: Made of thick steel plates, high rigidity and vibration resistance, commonly used for heavy-duty sanding machines.
- Steel beam frame: Made of welded channels, square steel, or I-beams, commonly used for medium-duty machines, easier for maintenance and transportation.
Summary
the plywood sanding machine combines feeding, pressure, sanding, abrasive belts, dust collection, electrical control, safety devices, and a strong frame to ensure high-quality, precise, efficient, and safe sanding operations. Proper coordination of these components guarantees uniform board thickness, smooth surfaces, and reliable production in both heavy-duty and fine finishing applications.
