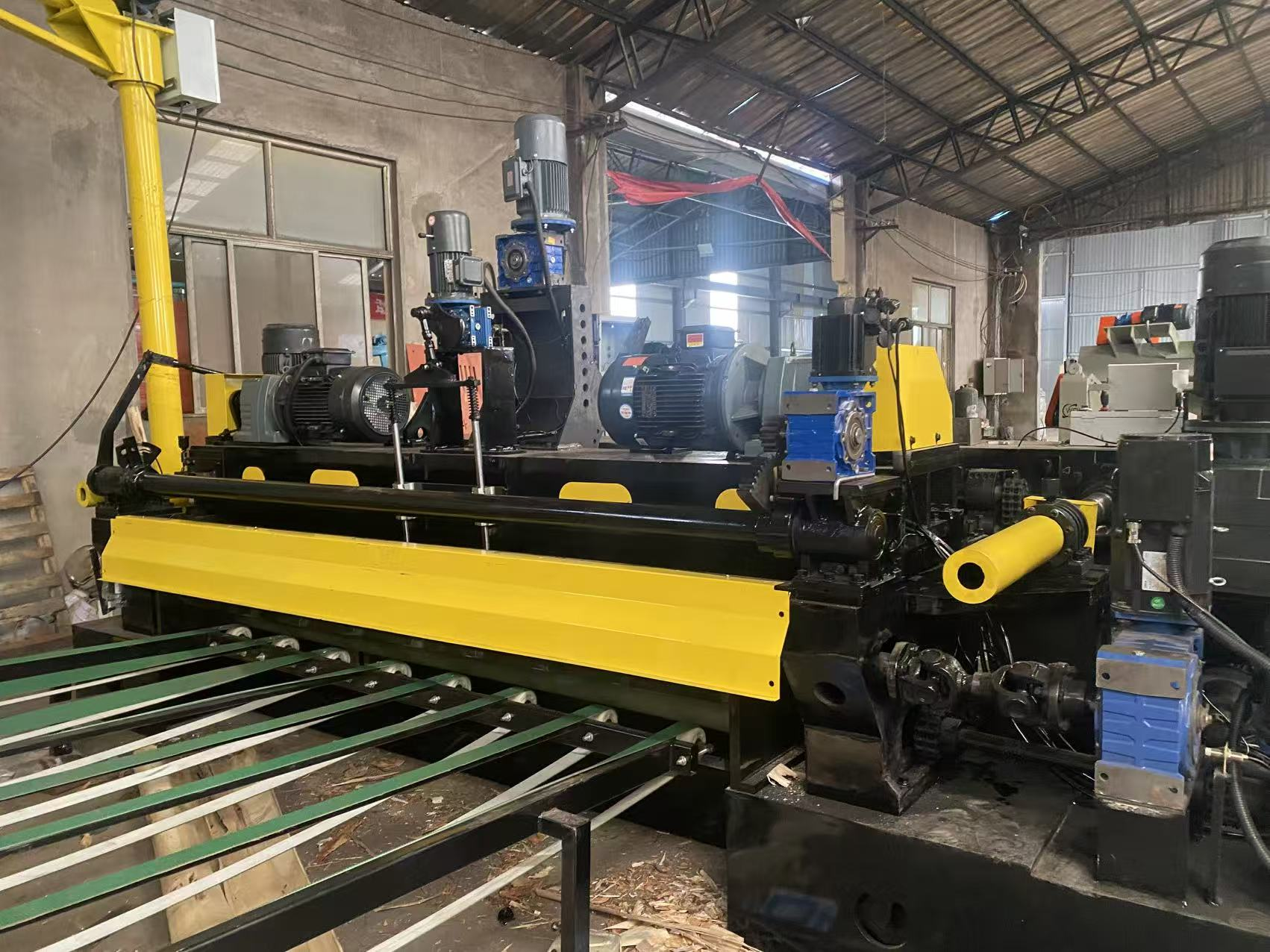

10 feet veneer peeling machine

Machine Components and Specifications:

• Double Roller: Ø125 mm, K87 Helical Gear Reducer, 15 kW Motor, 2 sets

• Single Roller: Ø125 mm, R87 Helical Gear Reducer, 15 kW Motor, 2 sets

• Feeding System: K87 Helical Gear Reducer, 18.5 kW Asynchronous Servo Motor, 1 set

• Clipper: RV130 Reducer, 5.5 kW Servo Motor, 1 set

• Rubber Roller: RV130 Reducer, 4 kW Motor, 1 set

• Guide Rail (Upper Section): 65# Linear Guide Rail

• Knife Gap Guide Rail: 55# Linear Guide Rail

• Lead Screw Diameter: Ø95 mm

Overall Machine Parameters:

• Overall Dimensions: 4500 mm (L) × 2250 mm (W) × 1450 mm (H)

• Total Power: 88 kW

• Peeling Thickness: 1.0 – 2.6 mm

• Max Peeling Diameter: 550 mm

• Min Core Diameter: 35 mm

• Peeling Speed: 0 – 80 m/min

• Total Weight: 13.5 tons

Features:

1. double roller moving model

• Simple and reliable structure– The knife carriage is fixed while the two rollers move forward together, ensuring stable operation with low failure rates.
• Easy maintenance– The transmission system is easy to adjust and maintain, providing long-term stability.
• Smooth operation– Dual rollers feed the log evenly, reducing vibration and ensuring uniform rotation.
• High efficiency– Fast feeding speed makes it ideal for continuous mass production.

2. Liner guide:

• High precision– The knife carriage or roller moves smoothly, keeping veneer thickness within ±0.05 mm.
• Low friction– Rolling contact reduces resistance and energy consumption.
• Long service life– Minimal wear ensures lasting accuracy over time.
• Excellent stability– Strong rigidity prevents vibration, producing smoother veneer surfaces.
• Easy maintenance– Modular design with long lubrication intervals and simple servicing.

3. Assemble technology:

The three-point alignment assembly ensures high precision, stable performance, and long-lasting machine accuracy, resulting in smooth and uniform veneer quality

Why Guoyu Machine Is Professional in Veneer Peeling Machines

1. 15+ years experience

We have been specializing in veneer peeling machines for over 15 years.

Our team has rich experience in both production and export, understanding different market requirements.

2.Production Capacity）

All key processes including welding, machining, and final assembly are completed in-house, ensuring stable quality.

3.Technology & Quality Control）

Main parts are processed by CNC machines, with spindle concentricity tolerance ≤0.02mm.

4. Durability

Double-roller moving structure remains stable without deformation for more than ten years.

Reinforced frame and precision linear guides ensure long-term performance stability.

5. Global Market & Service

Our machines are exported to over 30 countries including Algeria, Egypt, Indonesia, and Russia.

We provide full installation, commissioning, and online technical support.

6.Cost & Solution

Achieves the same peeling accuracy and stability as European brands at a much lower cost.

Customized solutions according to wood species and production capacity.
