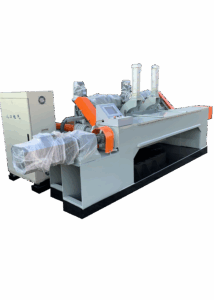

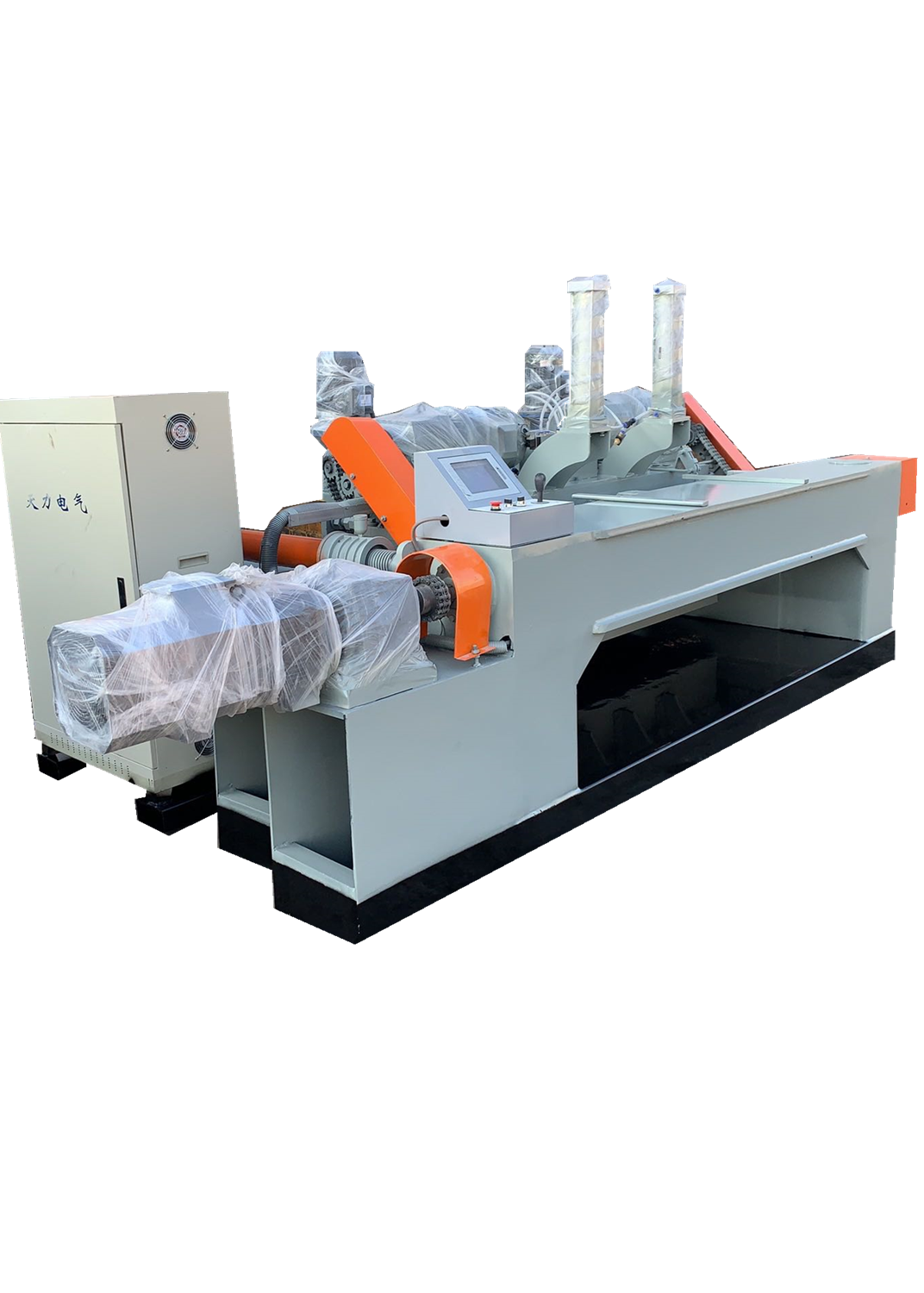

4ft Veneer Peeling Lathe with Full Servo Motors

4ft Veneer Peeling Lathe with Full Servo Motors

Performance Data:

Peeling Thickness: 0.8–4.0 mm
Peeling Speed: 30–120 meters/min
Max Log Diameter: 550 mm
Min Core Diameter: 26 mm
Overall Dimensions: 4700 mm (L) × 2100 mm (W) × 1700 mm (H)
Machine Weight: 8.5 tons

Technical Parameters

Double Rollers
- Diameter: 156 mm (Cross Arrangement)
- Gearbox: R87 Hard-Tooth Surface Reducer
- Motor: 11 kW Zhongtai Motor × 2 units
Single Rollers
- Diameter: 125 mm
- Gearbox: R87 Hard-Tooth Surface Reducer
- Motor: 7.5 kW Zhongtai Motor × 2 units
Feeding System
- Gearbox: R87 Hard-Tooth Surface Reducer
- Motor: 15 kW Servo Motor × 1 unit
Clipping Knife System (Rotary Chopper)
- Gearbox: RV90 Reducer
- Motor: 4 kW Servo Motor × 1 unit
Glue Roller System
- Diameter: 150 mm
- Gearbox: RV90 Reducer
- Motor: 4 kW Zhongtai Motor × 1 unit
Guiding System
- Oil-immersed guide rail with ball screw
- Screw diameter: 116 mm – 1 set
Hydraulic Knife Clamping System
- Rotary Knife Size: 1500 × 180 × 16 mm
- Vertical Knife Options: 889 / 965.2 / 1270 mm

Double Base Plate: 50#
Manual Veneer Receiving Rack: 5 m + 2 m
Monitoring System: 1 set (monitor + camera)
