Weight: Approx. 12 tons
Steel Plate Thickness: 35 mm (filled internally with 20 mm)
Frame Structure: Screw-assembled frame
Upper Beam: 900 mm (planed precision finished)
Lower Beam: 900 mm
Movable Beam: 400 mm
Columns: 4 pcs, 370 mm
Opening: 1800 mm
Working Platform Size: 1370 × 2700 mm
Main Cylinder Model / Size: Ø360 × 1050 mm × 2 pcs
Origin: Wuxi Suyi, China
Material: Cast steel cylinder body with condensation-resistant alloy plunger (scratch-proof)
Quantity: 2 pcs
Working Pressure: 26 MPa
Lifting Cylinder: Ø80 × 1050 mm × 2 pcs
Dust-free, maintenance-free hydraulic station from Wuxi Jinyuan
Low-Pressure Pump: Filling valve flow 125 L/min
High-Pressure Pump: 16HY plunger pump
Low-pressure pump motor: 1 pc
High-pressure pump motor: 7.5 kW ×1 pc
Motor Origin: Jiangsu Yinen, China

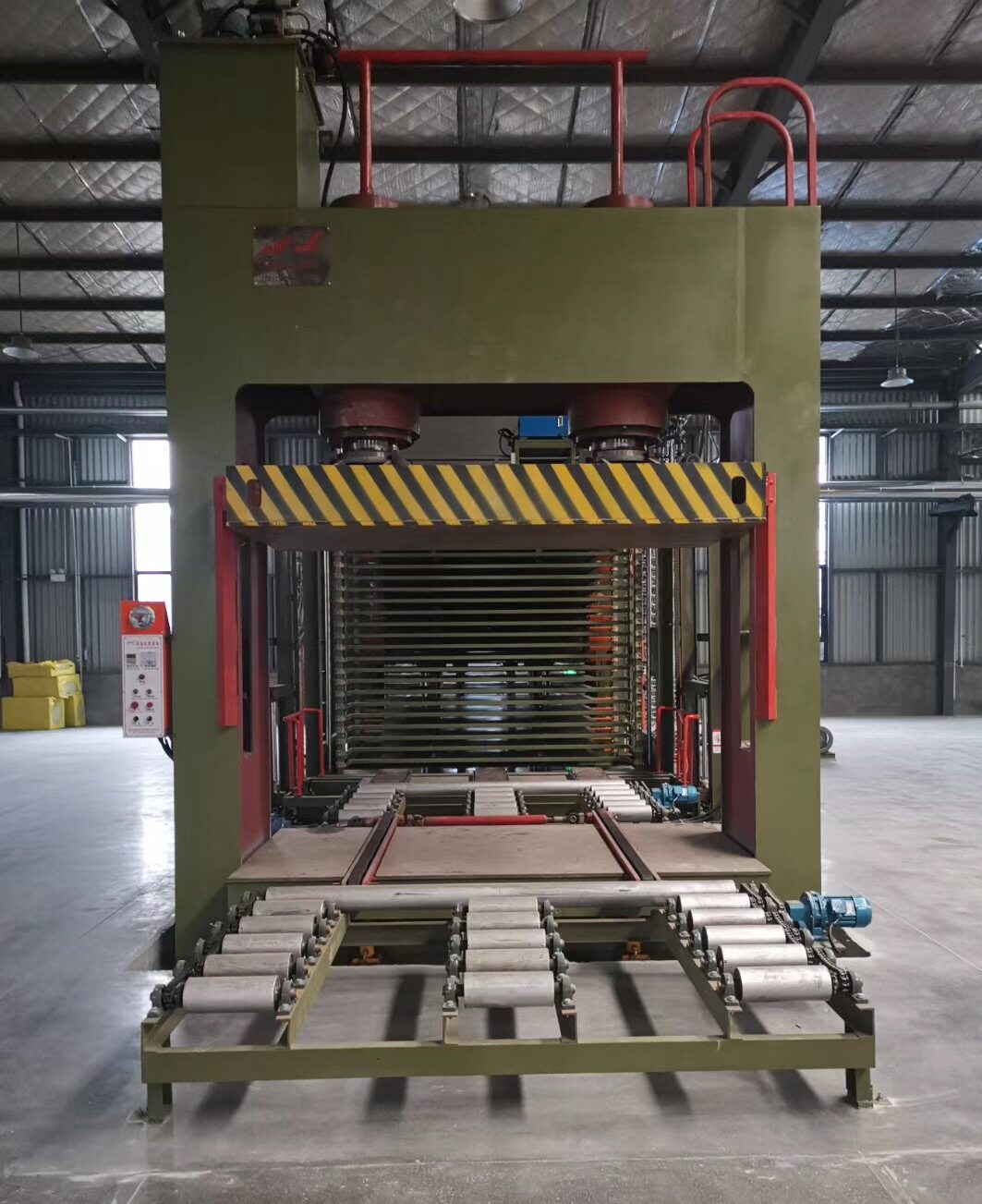

Pre-press machine equipped with built-in conveyor for automatic panel handling
Heavy-duty, stable frame for high-precision pressing
Cast steel cylinder body and alloy plunger ensure durability, scratch-proof performance
Dust-free, maintenance-free hydraulic system for long-term reliability
Built-in conveyor improves production efficiency and reduces manual handling
