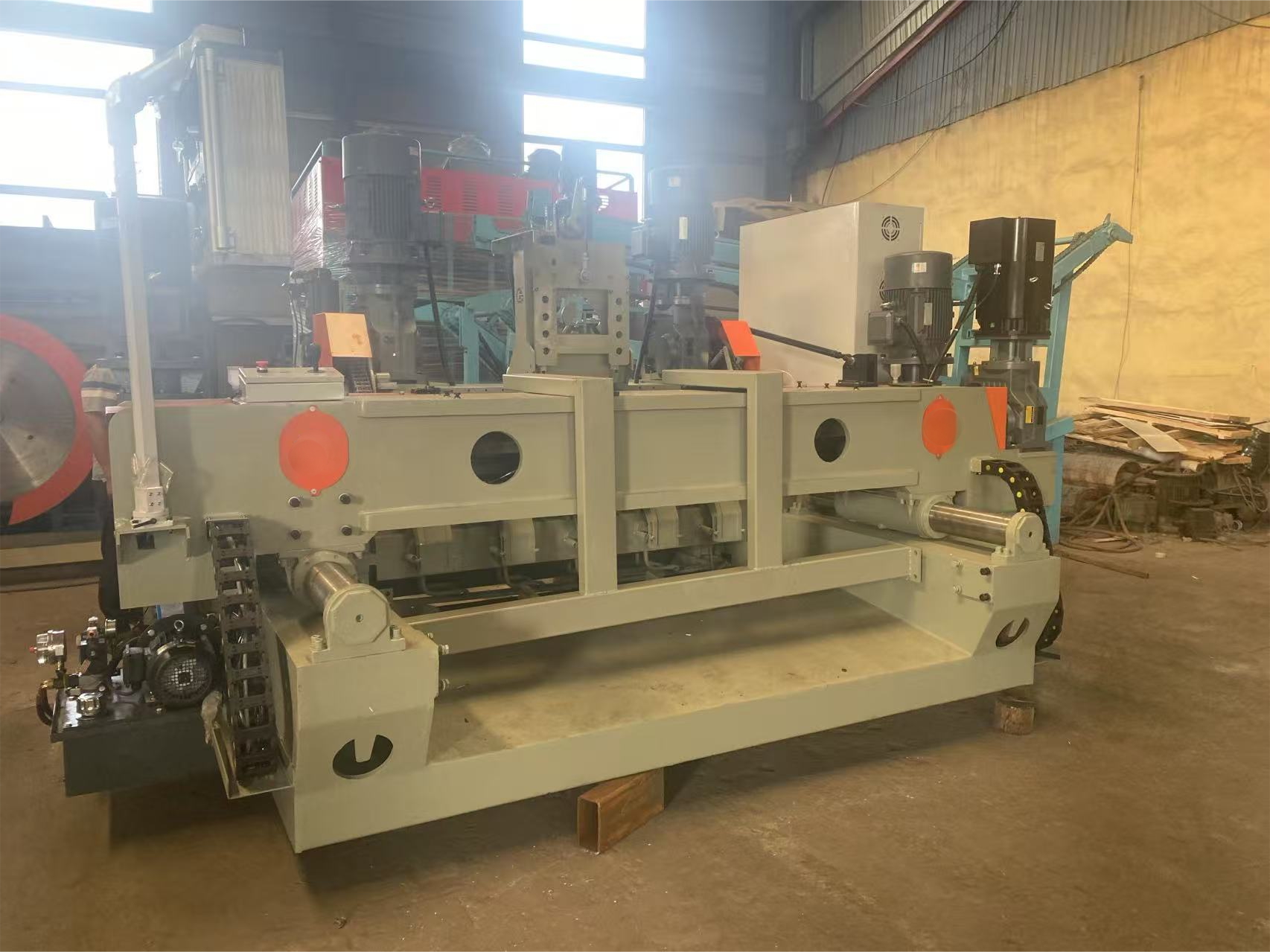

Casting CNC Log Veneer Peeling Machine

 Key Technical Specifications:

• Double Rollers:
  – Diameter: 156mm, Cross arrangement
  – Gearbox: K87 hardened gear reducer
  – Motor: 11kW Siemens Beide × 2 units

• Single Roller:
  – Diameter: 125mm
  – Gearbox: K87 hardened gear reducer
  – Motor: 11kW Siemens Beide × 2 units

• Feeding System:
  – Gearbox: K87 hardened reducer
  – Motor: 15kW servo motor × 1 unit

• Clipper (Chopper System):
  – Gearbox: RV110
  – Motor: 4kW servo motor × 1 unit

• Glue Roller:
  – Diameter: 230mm
  – Gearbox: RV110
  – Motor: 4kW Siemens Beide × 1 unit

• Knife Gap Adjustment System:
  – CNC-controlled
  – Motor: 2.2kW × 1 unit

• Knife System:
  – Veneer Knife Size: 1500 × 180 × 16mm
  – Vertical Knife Size Options: 889 / 965.2 / 1270mm
  – Hydraulic knife clamping included

• Guide System:
  – Oil-immersed linear guide with screw rod, diameter: 116mm
  – 1 set

• Main Structural Parts:
  – Double roller seat, single roller seat, and knife base: all casting iron

• Additional Features:
  – Manual veneer receiving rack: 5m + 2m
  – Monitoring system & display screen: 1 set
  – Electric lubrication system
  – Pneumatic shaking device
  – Air conditioner included in control cabinet

 Electrical Control Cabinet Includes:

• 15kW servo motor for feeding

• 11kW Kowor motors × 2 for double rollers

• 11kW Kowor motors × 2 for single rollers

• 4kW Kowor motor for glue roller

• 5.5kW Kowor motor for clipper

• 2.2kW motor for CNC knife-gap adjustment

• 2.2kW motor for veneer receiving rack

• 3kW motor for hydraulic knife clamp

• Touch screen interface, monitoring system, and air conditioning

Why Use Casting Iron for Roller Seats and Knife Base in our Peeling Machine?

1. Very Strong and Solid
   Cast iron is heavy and strong. It helps the machine stay steady when peeling wood, especially hard logs.

2. Reduces Vibration
   When the machine runs fast, it can shake. Cast iron helps absorb the shaking, so the machine works more smoothly.

3. Keeps Cutting Accurate
   A stable base means the knife doesn’t move around. This gives you even veneer thickness and a better surface.

4. Lasts Longer
   Cast iron parts don’t bend or wear out easily. They keep their shape, even after years of use.

5. Handles Heat Well
   The machine gets hot when working long hours. Cast iron doesn’t change shape from heat, which helps keep cutting steady.

Cast iron parts make the machine stronger, more stable, and more accurate — which is important for good-quality veneer and long machine life.
