Core Veneer Composer Machine

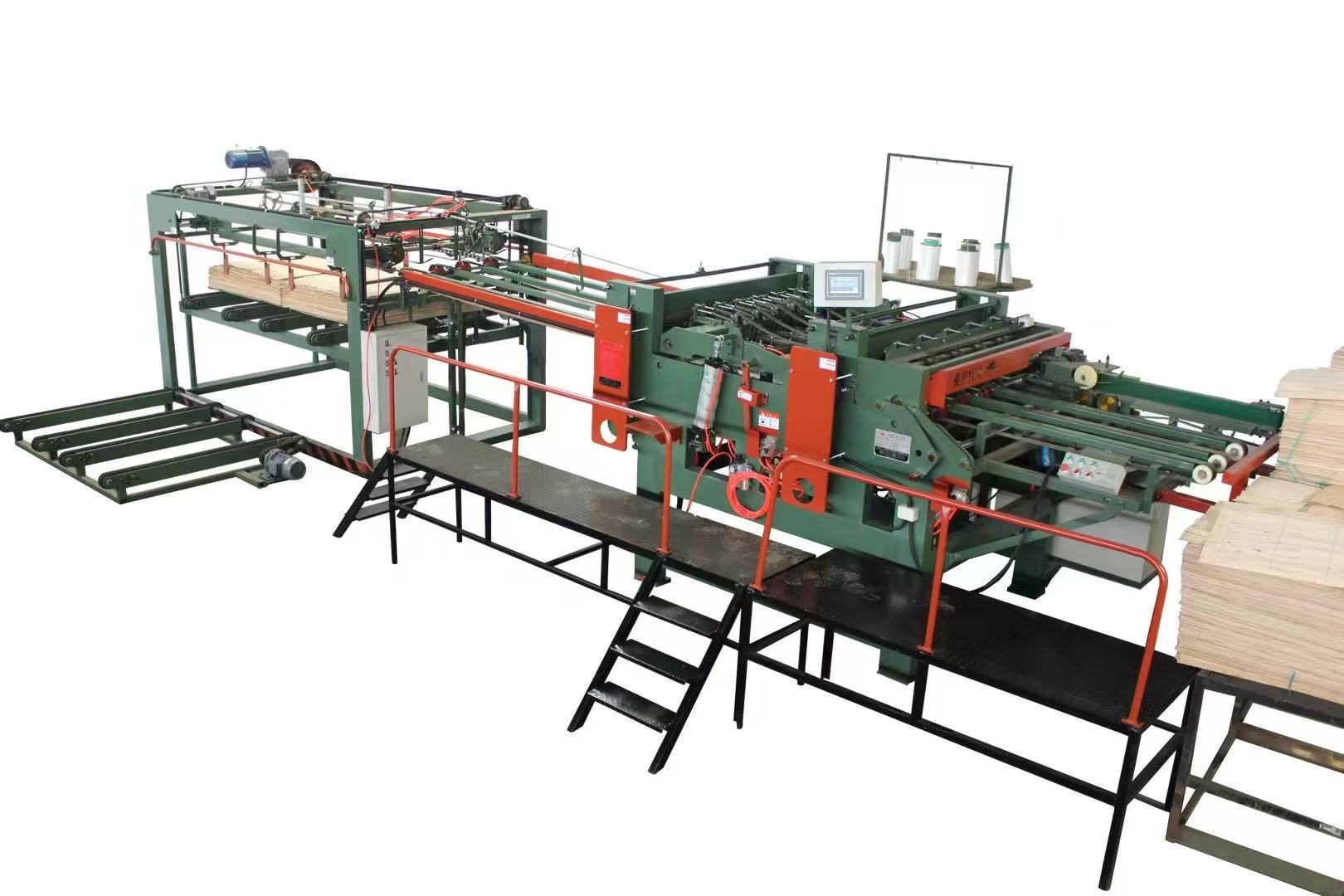

Core Veneer Composer Machine – Model DHPB-5A1

Key Features & Specifications:

• Drive Type: SERVO

• Overall Dimensions (L×W×H): 12,500 × 4,000 × 2,480 mm

• Core Composer Dimensions (L×W×H): 4,040 × 2,510 × 1,960 mm

• Stacker Dimensions (L×W×H): 3,400 × 2,200 × 2,480 mm

• Knife Length: 1,400 mm

Control & Automation:

• PLC: Taiwan TECO

• Touch Screen: WECON with long-range control

• Core Veneer Adjuster: Yes

• Finished Core Lateral Move: Yes

• Speed Adjust: Yes

• Finished Veneer Counter: Yes

Power & Motors:

• Glue Groove Heating: 9 kW

• AC Motor: 1 kW

• Front Drive: SINEE SERVO Motor 3 kW

• First Rear Drive: SINEE SERVO Motor 3 kW

• Second Rear Drive: SINEE SERVO Motor 3 kW

• Sides Edging Knife: SINEE SERVO Motor 3 kW

• Fixed Length Knife: SINEE SERVO Motor 3 kW

• Finished Core Convey Motor: 0.75 kW

• Stacker Up & Down Motors: 2.2 kW + 2.2 kW

• Stacker Top Convey Motor: 1.1 kW

• Stacker Bottom Convey Motor: 0.75 kW

• Lift Motor: 3 kW

• Total Number of Servo Motors: 5

• Thread (Yarn) Number: 7

• Glue Points (Nose) Number: 7

• Working Table: 2

• Vertical Knife: 2

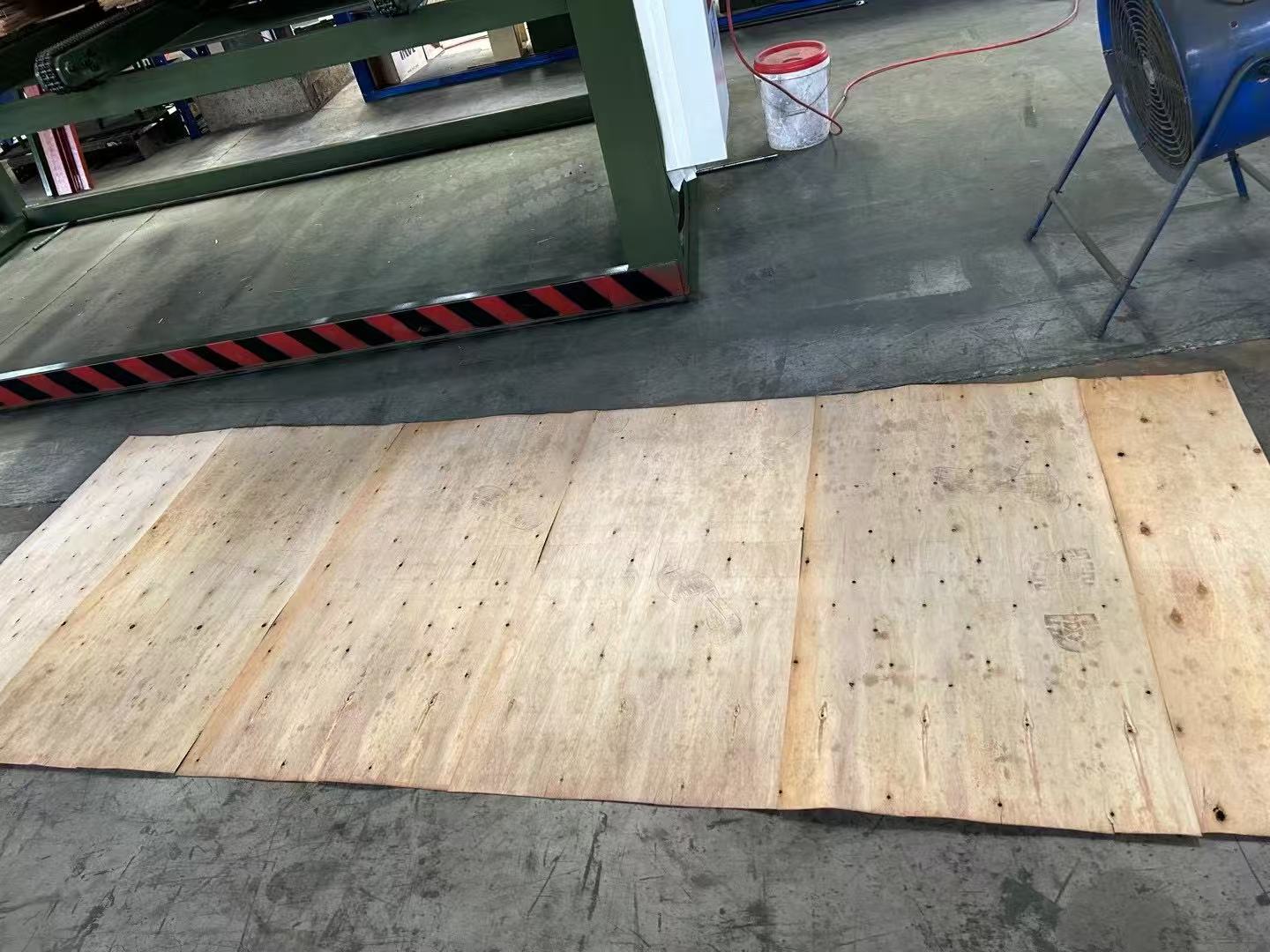

Finished Plywood Core Panels After Horizontal Veneer Composing

Why Choose DHPB-5A1?

• High Productivity: 300–360 finished veneers per hour.

• Precision Control: Servo-driven motors and adjustable transfer speed (0–35 m/min) for flawless veneer alignment.

• Versatile Operation: Handles core veneers 1.0–3.6 mm thick with horizontal jointing.

• Smart Automation: PLC-controlled with WECON touch screen, lateral adjustments, speed control, and finished veneer counter.

• Durable Design: Heavy-duty steel frame minimizes vibration, ensuring smooth operation and long-term reliability.

• Comprehensive Functionality: Equipped with glue groove heating, fixed and vertical knives, stacker system, and multiple servo motors for seamless production.

Why Do you need Horizontal Core Veneer Composer?

The Horizontal Core Composer is a machine that joins several small wood sheets or veneers into wider, flat, and strong panels. It is widely used for making plywood, blockboard, furniture panels, and other wood products.

1. Make wide panels easily：Joins narrow sheets into the size you need for furniture, flooring, or doors.

2. Keep panels stable and flat：Reduces warping, cracking, or bending of wood, making the panel stronger and more reliable.

3. Save time and work efficiently：Automatic feeding, alignment, pressing, and gluing speed up production while keeping quality consistent.

4. Strong and smooth joints：Ensures the seams are tight and even, so the panels look good and are ready for sanding or laminating.

5. Work with different boards：Can handle plywood cores, blockboards, decorative panels, and high-end furniture boards.

In short, the Horizontal Core Composer helps turn small sheets into wide, flat, high-quality panels quickly and reliably.
