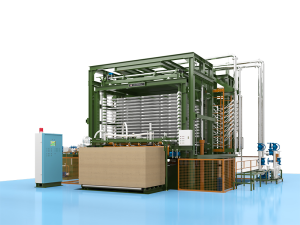

The 25-layer full automatic hot press makes plywood faster, safer, and with better quality. It can press more plywood boards at one time, uses less labor, and takes up less factory space. With automatic loading and unloading, workers don’t need to handle hot boards, which improves safety. It’s the right choice for factories that want high output, lower costs, and stable quality for furniture and decorative panels.
| Nominal Pressure | 12000KN |
| hot press platen size | 4200(L)*1370(W)*65mm(H) |
| Feeding mode | double input and double output |
| Plywood size(mm) | 12302700mm,12302850mm,12303000mm,12303050mm,1230*3900mm |
| Max. opening space | 80mm |
| Number of layers | 15 layers |
| Main oil cylinder of press | Φ2601350mm8PCS |
| Press lifting cylinder | Φ2601350mm2PCS |
| Working stroke(mm) | 1200mm |
| Working press(kg/cm2) | 21kg/cm2 |
| Closing speed(M/min) | 3.6M/min |
| Overall size(mm) | 5650mm(L)*1405mm(W)*4750mm(H) |
| Hydraulic station | Fully sealed dust-free design |
| Total weight | 90T |
| Plywood size | 12302700mm,12302850mm,12303000mm,12303050mm,1230*3900mm |
| Opening | 80mm |
| Number of layers | 15 layers |
| Diameter and number of lifting cylinder(mm) | Φ902300mm2PCS |
| Working stroke(mm) | 2150mm |
| Lifting speed | 3.6M/min |
| Overall size(mm) | 4220mm(L)*2020mm(W)*5500mm(H) |
| Driving feeding | double hydraulic motor |
| Total weight(T) | 11T |
