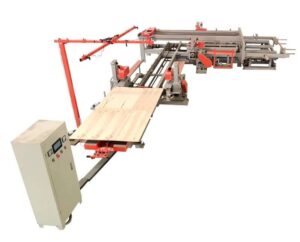

Full Automatic Plywood Cutting Machine

Precision Panel Saw – Technical Specifications

• Saw Blade Diameter:

  • Main Saw Blade: 305 × 25.4 mm, 120 teeth

  • Scoring Saw Blade: 180 × 25.4 mm, 36 teeth

• Blade Speed: 7000 RPM

• Cutting Size Range:

  • Width: 650–1270 mm

  • Length: 1500–2800 mm

• Linear Guide Rail: 30 mm

• Linear Slider: 30 mm large slider with automatic lubrication system

• Main Motor: 11 kW brand new Siemens Beide motor

• Reducer Motors (2 units): 1.5 kW–4 / 2.2 kW–4

• Scoring Motors (4 units): 1.1 kW–2

• Control System: Inovance PLC (HuiChuan)

• Inverter: Mitsubishi brand

• Contactor: Zhejiang Chint brand

• Bearings: Main saw shaft uses Japanese NSK bearings

• Electronic Components: Japanese Omron

Why Choose the Full-Automatic Edge Cutting Machine？

1. Automatic Operation
   • The machine feedings, positions, cuttings, and unloading of plywood boards work automatically. one-button start is enough for all process.
2. High Efficiency
   • Works continuously and quickly, high efficiency for mass production.
3. Accurate Cutting
   • Uses the control system to keep cutting straight and precise. Diagonal error is very within 0.05mm.
4. Saves Labor
   • One person can run the machine, reducing the labor costs..
5. Easy to Control
   • you can set the cutting size, speed and other settings only by the touch screen.
6. Safe to Use
   • Has safety features like emergency stop, protective covers, and limit switches to protect the worker’s safety.
