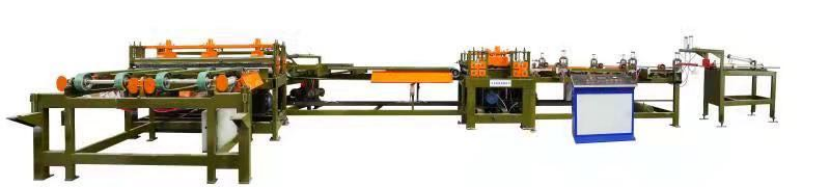

Fully Automatic Wood Panel Roller Table Edge Saw

• Main Frame: welded 160×80×6 mm square tube for high stability

• Main Motor:7.5KW customized high-power type

• Reducers: 0.75kw-17 / 2.2kw-17 / 1.5kw-17

• Marking Motor: 1.1kw-2

• Saw Spindle Bearing: NSK Japan, high-precision imported bearing

• Saw Seat: Oil circulation type

• Panel Size: 4×8 ft

• Control System: Delta Taiwan PLC

• Transmission Roller Power: 1.5kw

• Conveying Power: 6kw

• Inverter: Sine wave, for precise speed control

• Automatic Feeding/Discharge Power: Wpda80

• Suction Cup Feeding Power: Pneumatic

• Feeding Method: Frame suction cup

• Thickness Adjustment: Manual

• Sensors: Omron Japan, precision detection

• Pneumatic Components: Lokguan, imported sealing rings

• Electrical Components: Schneider & Omron

• Brake Motor: Tangying Taiwan, electromagnetic

• Alignment Method: Automatic alignment with cylinder + rack

• Output Capacity: Approx. 400 sheets/hour (adjustable)

• Brush Cleaning: Long saw belt brush

• Wide Saw: Equipped with cloth wheel

• Spindle Power: 30KW

What’s the Difference Between Roller Table Edge Saw and Normal Plywood Edge Saw?

Who Should Choose the Fully Automatic Roller Table Edge Saw?

The Fully Automatic Roller Table Edge Saw is ideal for businesses that value high efficiency, precision, and automation.

1. Large Plywood Manufacturers

• Process large volumes of panels daily with consistent quality.

• Achieve high cutting accuracy while minimizing material waste.

• Reduce labor costs and improve overall production efficiency.

2. Modern Woodworking & Panel Processing Factories

• Handle diverse panel sizes and thicknesses.

• Integrate into automated plywood production lines, reducing manual operations.

3. Businesses Requiring High-Precision Cutting

• Perfect for premium cabinetry plywood, furniture plywood, and door plywood manufacturing.

• Maintain diagonal error below 0.5mm for superior product quality.

4. Companies Looking to Reduce Labor Intensity

• Minimize manual handling, pushing, and alignment tasks.

• Enhance worker safety by reducing direct contact with saw blades.

5. Long-Term Production Investors

• Although the initial investment is higher(the price is higher than Normal type saw, it ensures stable output and efficiency over time.

• Optimize material utilization and production consistency for sustained profitability.

Why Fully Automatic Roller Table Edge Saws Are More Expensive？

Investing in a fully automatic roller table saw may cost more upfront, but the returns in efficiency, precision, and cost savings far outweigh the price.

1. Smarter Automation
Equipped with PLC controls, automatic alignment, and intelligent feeding/discharge, it delivers smooth, accurate, and worry-free operation.

2. Precision Guaranteed
Built with NSK high-precision bearings, precision reducers, and a rigid frame, ensuring cutting accuracy within ≤0.5 mm diagonal error.

3. Higher Productivity
Capable of cutting hundreds of panels per hour, powered by high-performance motors designed for continuous heavy-duty operation.

4. Safer and Cleaner
With automatic brakes, stable feeding, dust-cleaning brushes, and protective systems, safety and cleanliness are guaranteed.

5. Long-Term Savings
While the purchase price is higher, it reduces labor costs, minimizes material waste, and increases efficiency—delivering a faster return on investment.
