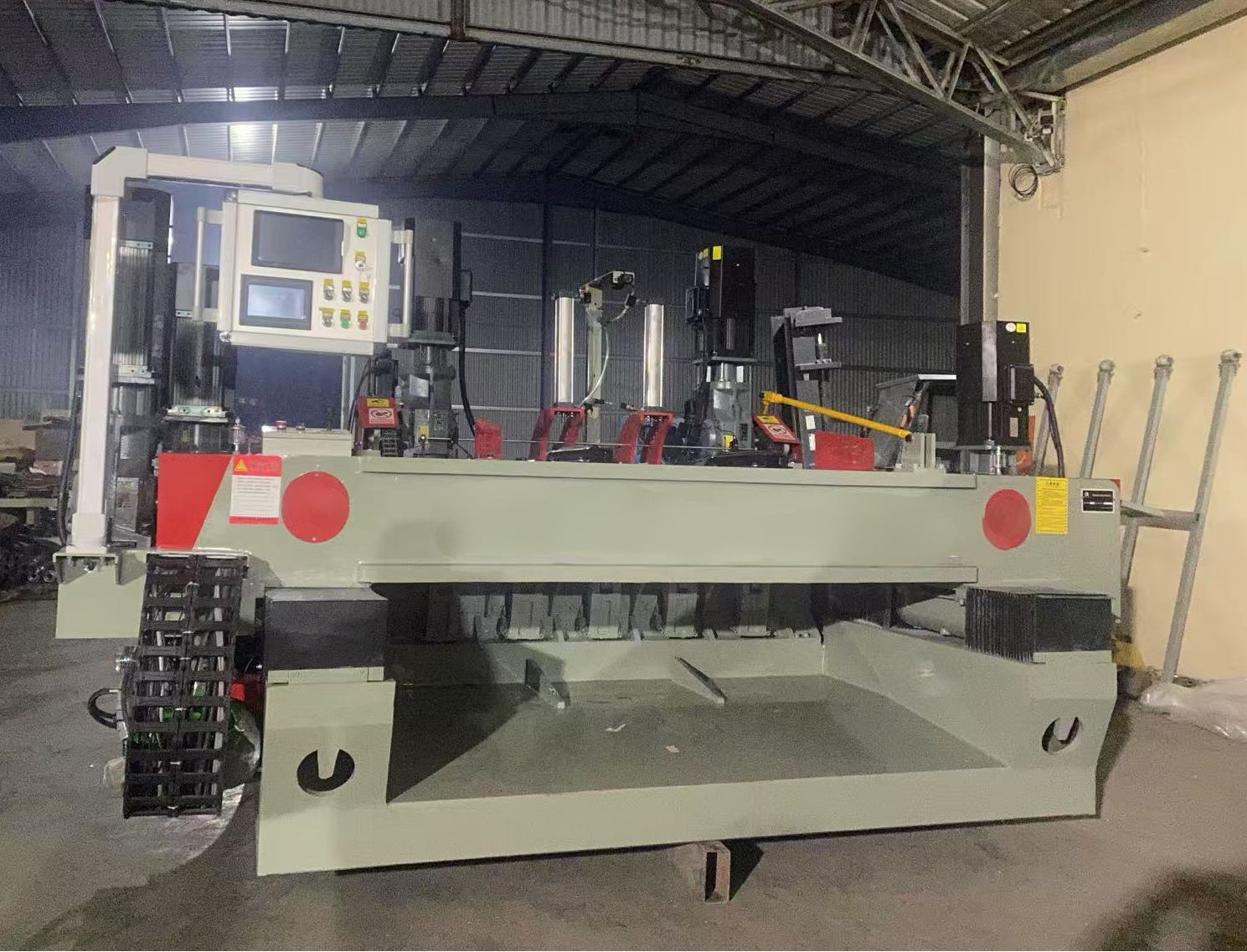

heavy duty CNC veneer peeling machine
heavy duty CNC veneer peeling machine

Heavy Duty Double-Roller CNC Veneer Peeling Machine

Processing Capacity:
– Max log diameter: 550mm
– Min remaining core diameter: 24mm
– Veneer thickness: 0.8–4.0mm
– Peeling speed: 30–120 meters/min

  • Machine Dimensions: L 4000mm × W 2100mm × H 1700mm
  • Total Machine Weight: 9.5 tons



 TECHNICAL PARAMETERS

  • Main Rollers: Double cross rollers, diameter 156mm
    – Equipped with K87 hardened gear reducers
    – Power: 11kW Siemens Beide motors × 2 units
  • Single Roller: Diameter 125mm
    – K87 hardened gear reducers
    – Power: 11kW Siemens Beide motors × 2 units

  • Feeding System:
    – K87 hardened gear reducer
    – Power: 15kW servo motor × 1 unit

  • Clipping System (Chopping Knife):
    – RV110 reducer
    – Power: 4kW servo motor × 1 unit

  • Glue Roller: Diameter 230mm
    – RV110 reducer
    – Power: 4kW Siemens Beide motor × 1 unit

  • Guide System:
    – Oil-immersed sliding rods, screw diameter: 116mm
    – 1 set

  • Hydraulic Knife Clamping System
    – Veneer Knife Size: 1500 × 180 × 16mm
    – Vertical Knife Sizes: 889 / 965.2 / 1270mm

  • Additional Components:
    – Dual seat plate: 50#
    – Manual veneer receiving rack: 5m + 2m
    – Monitoring system and display screen: 1 set

  • Control System (Electrical Cabinet):
    – Includes:
    · 15kW servo for feeding
    · 11kW Siemens Beide motors for double rollers × 2
    · 11kW Siemens Beide motors for single rollers × 2
    · 4kW Siemens Beide motor for glue roller
    · 4kW Siemens Beide motor for clipper
    · 3kW Siemens Beide motor for hydraulic knife clamp
    · Automatic lubrication system
    · Pneumatic shaking device
    · Real-time monitoring screen
