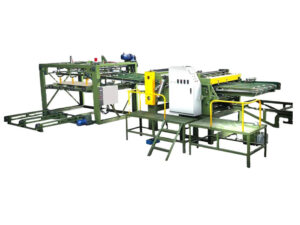

Plywood Core Composer

NO.	Part	Item	Model	Brand	Qty
1	Main Frame	Main Frame	U-steel+steel board with precious machining		1
2	stacking frame	Main Frame	U-Steel+Steel board		1
3	Drive of sides-cutting	Servo motor	EA180-8R5-3A-SEC18	SINEE	1
3	Drive of sides-cutting	Gearbox	Ps142L1-008-P2-S2	Yingfushi	1
4	front drive	Servo motor	EA180-8R5-3A-SEC18	SINE	1
4	front drive	Gearbox	Ps142L1-008-P2-S2	NEWSTART	1
5	back drive	Servo motor	EA180-8R5-3A-SEC18	SINEE	1
5	back drive	Gearbox	Ps142L1-008-P2-S2	Yingfushi	1
6	Synchronized seams	Servo motor	EA180-8R5-3A	SINEE	1
6	Synchronized seams	Gearbox	Ps142L1-008-P2-S2	Yingfushi	1
7	drive of Cut-to-length back knife	Servo motor	EA180-8R5-3A-SEC18	SINE	1
7	drive of Cut-to-length back knife	Gearbox	Ps142L1-008-P2-S2	Yingfushi	1
8	Take-up frame over the bridge drive	Gear box	BWDO-9 0.75KW	Siemens Beide Motor	1
9	Take-up frame lift shaft drive	motor	YEJ-100L1-4 2.2KW	Siemens Beide Motor	1
9	Take-up frame lift shaft drive	Gearbox	WPDS-100-B 2.2KW	Siemens Beide Motor	1
10	Take-up frame climbing drive	Gearbox	BWDO-9 0.75KW	Siemens Beide Motor	1
11	Finished product stacking launched	Gearbox	BWD-1-59-1.5	Siemens Beide Motor	1
12	cutting knife	knife			4
14	Panel box	PLC	AP360-0BT-A	TECO	1
15		Temperature acquisition module	AP-4RD	TECO	1
16		Display (Human-Machine)	LEVI-102L	WECON	1
