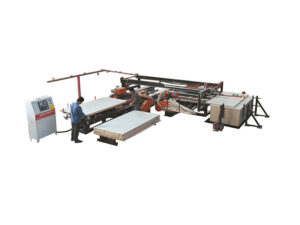

Plywood DD Cutting Saw

Saw Board Size:Width:1220–1240 mm;Length:2440–2460 mm

Cutting Thickness:0–7cm

Diagonal Error Range:0–0.5 mm

Dimensions Long saw: 6.0 × 2.12 × 1.22M;Wide saw: 3.64 × 3.36 × 1.22M

Total Weight:6 tons

Why the Plywood DD Saw is Very Important?

The plywood DD saw is one of the final and critical machines in the plywood production line. it plays a decisive role in determining the dimensional accuracy, surface quality, production efficiency, and overall economic value of the plywood.

Technical parameters

Main Saw Blade Diameter:305×25.4 mm, 120 teeth

Scoring Saw Blade:180×25.4 mm, 36 teeth

Saw Blade Speed:7000 RPM

Mechanical Processing CNC lathe

Motor Power

Main Motor (Speed) :10 KW

Reduction Motors (2): 1.5 KW4PCS / 2.2 KW4PCS

Scoring Motors (2) :1.1 KW*2 PCS or 4PCS((Optional)

Electrical parts

Electrical System: Imported LOKOAN brand

Bearings Saw head bearings: Japan NSK bearings

Electronic Components:Japan Omron

What’s the Plywood quality with Our Plywood DD saw?

Straight and Smooth Edges
- All four sides are cut straight and neatly.
- The trimmed edges are smooth, with no visible saw marks.
No Defects
- No burrs, burn marks, or other visible defects.
Accurate Dimensions
- No negative deviation.
Edge Quality
- Edge straightness and squareness are national standard limits.
- For hardwood plywood, edge tolerance is less than 0.05mm.
