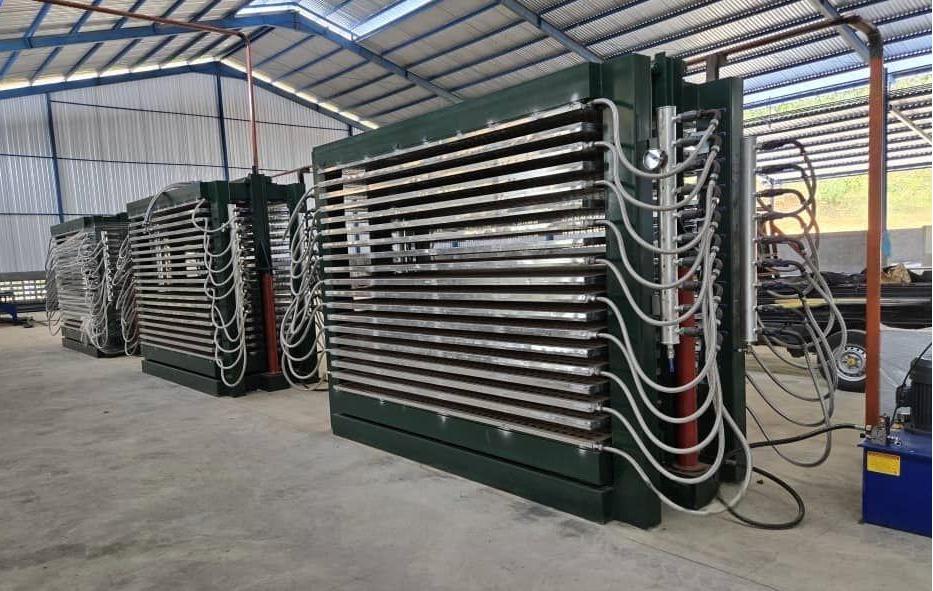

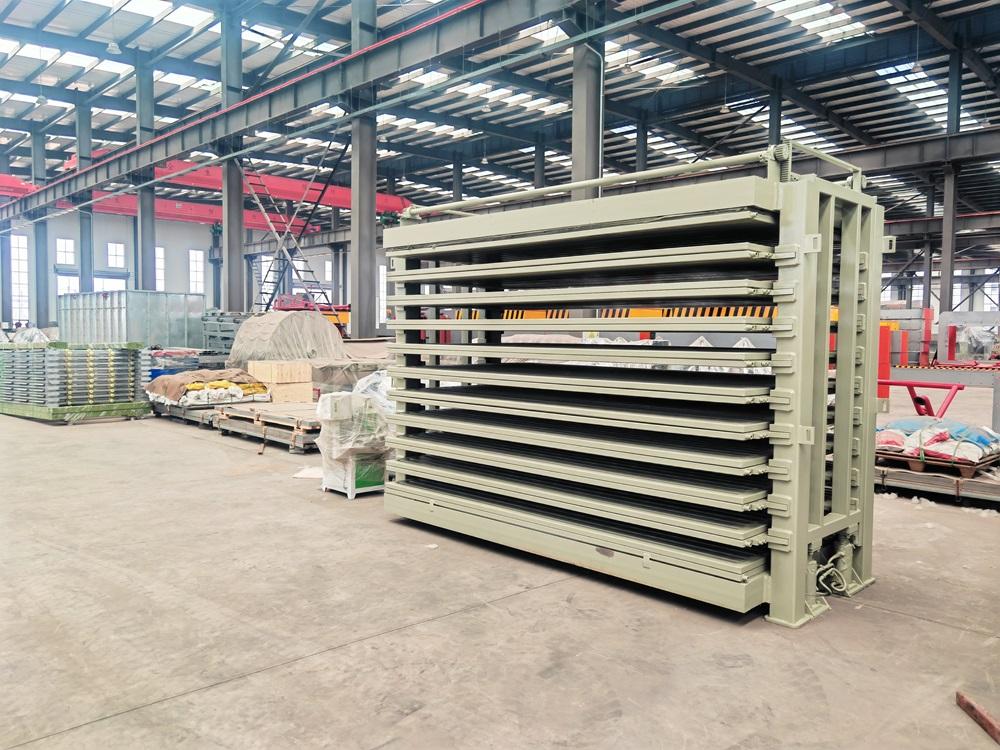

Plywood Hot Press Dryer

Plywood Hot Press Dryer Key Parameters

• Nominal Pressure: 80 tons (kN)

• Loading Direction: Horizontal

• Number of Layers: 15

• Layer Spacing: 70 mm

• Number of Hot Press Plates: 16

• Plate Size: 2700 × 1370 × 42 mm, double-in, double-out, with double-side sliding grooves

• Number of Hydraulic Cylinders: 2

• Cylinder Diameter: 120 mm (Wuxi brand)

• Stroke: 1050 mm

• Max. Pressure: ≤15 MPa

• Closing Time: 20 s

• Low-Pressure Pump Flow: 65 L/min (1 unit)

• Low-Pressure Pump Pressure: ≤3 MPa

• Low-Pressure Pump Power: 15 kW (1 unit)

• High-Pressure Pump + Motor Power: 16 L/min + 3 kW motor

• Control System: Fully automatic control box, segmented timing for moisture exhaust & pressure release, touch screen vertical control cabinet

• Unit Pressure on Board: 10 kgf/cm²

• Frame Connection: 150 × 200 mm national standard square tube, 8 mm thickness

• Overall Dimensions: 3300 × 1370 × 2450 mm

• Steel Plate Thickness: 8 mm

• Upper/Lower Beams: Upper 200 mm / Lower 200 mm

• Movable Beam: 200 mm

• Frame Leg Width: 200 mm

• Weight: Around 20 tons

Why Choose Hot Press Dryer?

• Keeps Boards Flat
  Presses boards while drying to prevent bending or warping.

• Even Drying
  Heat spreads evenly, so moisture is removed consistently across each board.

• Works with Thick & Multi-layer Boards
  Can handle several thick layers at once, like 28 mm container flooring.

• Fewer Defects
  Reduces gaps, warping, and edge problems, giving you more reliable quality.

• Energy Efficient
  Uses heat and pressure together for faster drying with lower energy use.

Why Choose Hot Press Dryer Made in Guoyu Machinery?

• High Pressure, Perfect Boards – 80 tons nominal pressure ensures flat, dense, and warp-free boards.

• Multi-layer & Horizontal Loading – Press multiple layers at once with even heat distribution for faster, consistent drying.

• Advanced Hydraulic System – Dual cylinders and pumps deliver precise, uniform pressure for every layer.

• Flexible Stroke & Max Pressure – 1050 mm stroke and ≤15 MPa pressure handle different thicknesses and multi-layer stacks effortlessly.

• Fast & Fully Automatic – 20-second closing time with programmable cycles reduces labor and boosts productivity.

• Sturdy Frame & Durable Build – Heavy-duty structure keeps machine stable under high pressure, ensuring long-term reliability.

• Compact & Efficient – 3300 × 1370 × 2450 mm footprint fits easily into workshops and supports multi-machine production.
