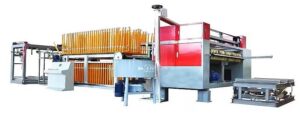

Automatic Plywood Putty Machine – Key Features:
Fully automatic: feeds, applies glue, levels, and transfers boards.
Even glue application for smooth surfaces.
Fast production with adjustable speed.
Saves glue and reduces waste.
Works with different board sizes and thicknesses.
Easy to operate with touch screen control.
Safer and cleaner operation, less dust and glue fumes
| No. | Equipment | Qty | Key Specs | Power (KW) | Remarks |
|---|---|---|---|---|---|
| 1 | Side Suction Plate Pushing Machine | 1 | 2.2×0.9×1.41m, 2 suction cups | — | Steel tube frame |
| 2 | Alignment Platform | 1 | 2.4×1.7×0.95m, 6 rollers | — | Square tube + channel steel |
| 3 | Main Machine | 1 | 1.9×2.2×1.6m, adjustable glue tank, digital counter | 4×2 | Soft wear-resistant knives |
| 4 | Transition Conveyor Frame | 1 | 4.5×1.65×1.6m, shaft & disc roller | 1.5 | Channel steel frame |
| 5 | Single Sheet Drying Rack | 1 | 6×2.5×2.5m, 13 sheets/m | — | Chain-driven, motor + brake |
| 6 | Auto Board Receiving + Transition | 1 | 1.9×4.5×1.85m, 5 belts, 150 nylon wheels | 0.75 | Square tube frame |
| 7 | Standard Lifting Table | 2 | 2.3×1.1×0.5m, hydraulic | — | Steel + channel frame |
| 8 | Large Mixer | 1 | 1.7×1.3×1.3m, 0.5m depth | 5.5 | 6-stage motor |
| 9 | Feeding Machine | 1 | 2.8m | 2.2–4 | — |
| 10 | Refeeding Machine | 1 | 2.2m | 2.2–4 | — |
| 11 | Electrical Cabinet | 1 | 0.7×0.4×1.1m | — | Chint & Omron controls |
Improved Surface Quality: Fills knots, cracks, and voids in the core veneer or face veneer, creating a smooth, defect-free surface for finishing.
Higher Efficiency: Automates the putty application, reducing manual labor and speeding up the preparation process for sanding and laminating.
Consistent Results: Ensures uniform putty distribution, preventing uneven spots that can affect sanding or final coating quality.
Enhanced Final Product: Reduces surface imperfections, improving the appearance and durability of the finished plywood.
In short: The plywood putty machine ensures smooth, even veneer surfaces, making subsequent sanding and finishing faster, easier, and higher in quality.
