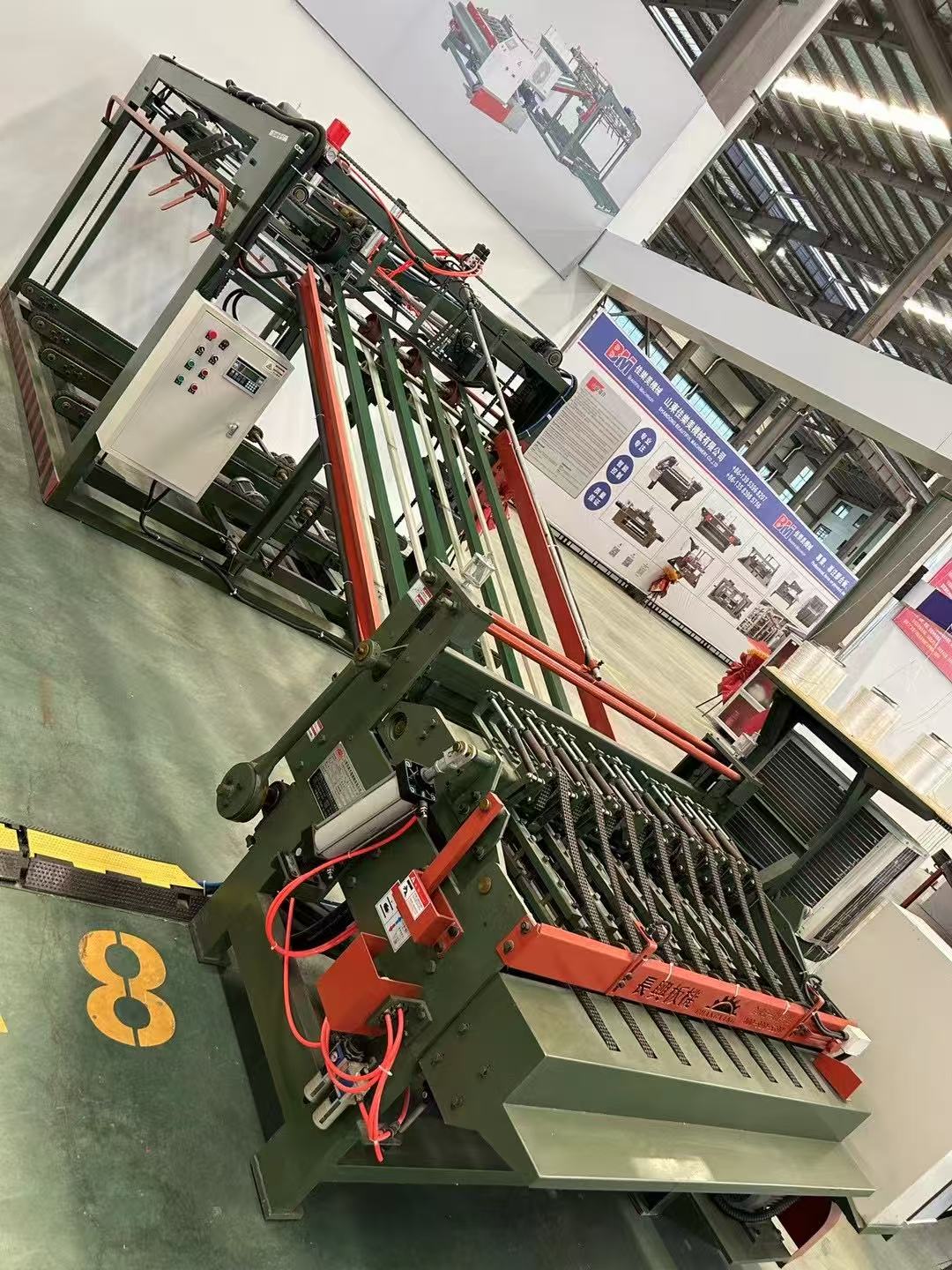

Plywood Small Strip Core Composer

Plywood Small Strip Core Composer Parameters

“Plywood Small Strip Core Composer” is a specialized to join and arrange narrow wood strips (small core strips) into complete plywood core veneers, which can then be pressed and laminated to produce full-size plywood panels.

• Main Machine Body

  • Part: Main Frame

  • Material: Channel Steel + Steel Plate

• Simple Stacking Rack

  • Part: Stacking Rack

  • Material: Profile

• Finished Board Cutting Drive

  • Part: Electromagnetic Clutch

    • Model: LSD-Z-10

  • Part: Motor

    • Model: YE2-100L1-4, 2.2 kW

• Rear Drive Device

  • Part: Planetary Gearbox

    • Model: Ps142L1-008-P2-S2

    • Brand: NEWSTART / Infini

  • Part: Servo Motor

    • Model: IMS20A-18M30C15C-4-M3

    • Brand: INVT

• Stacking Rack Bridge Drive

  • Part: Cycloidal Pinwheel Reducer

    • Model: BWYO-9, 0.75 kW

• Shearing Knife

  • Part: Blade

• Electrical Control System

  • Part: PLC Control

    • Model: H3u Series

    • Brand: Inovance

  • Part: Display (HMI)

    • Model: TPC1021Nt

    • Brand: Kunlun Tongtai

  • Part: Low Voltage Circuit Breaker

    • Model: Acti9 Series

    • Brand: Schneider

  • Part: AC Contactor

    • Model: LC1D Series

    • Brand: Schneider

  • Part: Intermediate Relay

    • Model: RXM Series

    • Brand: Schneider

Why Do You Need the Plywood Small Strip Core Composer?

The Small Strip Core Composer is very helpful in plywood production:

• Saves time and effort: Joins small wood strips into full-size panels automatically, so workers don’t have to do it by hand.

• Keeps panels even and flat: Makes sure each strip is lined up correctly, preventing warping.

• Makes stronger, better-quality plywood: The joined strips form a solid, stable core for furniture or decorative boards.

• Reduces waste: Uses small pieces of wood that would otherwise be thrown away.

• Flexible production: Can handle different panel sizes and thicknesses.

In short, it makes plywood production faster, easier, and more efficient.
